Rackmount Server / Workstation
-
Rackmount Low Profile Server
Wallmount Industrial PC
-
Mini-PC / Server Platform



Rackmount Server / Workstation Platform

5U 14-slot Rackmount IPC Workstation With 10.4” TFT LCD


-  5U 19” Rackmount Chassis with 10.4” TFT Display, Slim Keyboard and

   Touch Pad, Intel® CoreTM  2 Duo / CoreTM  2 Quad LGA 775 Level IPC

   Workstation Platform

-  Intel® CoreTM  2 Duo / CoreTM  2 Quad @ 800/1066/1333 MHz FSB

-  4 GB DDR II 667/800 SDRAM

-  Intel Q35 with Express Chipset , Optional DVI or LVDS interface

-  On Board 2 x Intel® 82573L Gigabit LAN

-  On Board HD Audio Interface, USB 2.0 Interface

-  On Board 6 x SATA with RAID function , Mini-PCI socket Interface

-  400W Power Supply


4U 14-slot Rackmount  Workstation With 6.4”/8.4" TFT LCD


-  4U 19” Rackmount Chassis with 6.4”/8.4" TFT Display, Slim Keyboard

   and Touch Pad, Intel® CoreTM  2 Duo / CoreTM  2 Quad LGA 775 Level IPC Workstation Platform

-  Intel® CoreTM  2 Duo / CoreTM  2 Quad @ 800/1066/1333 MHz FSB

-  4 GB DDR II 667/800 SDRAM

-  Intel Q35 with Express Chipset , Optional DVI or LVDS interface

-  On Board 2 x Intel® 82573L Gigabit LAN

-  On Board HD Audio Interface, USB 2.0 Interface

-  On Board 6 x SATA with RAID function , Mini-PCI socket Interface

-  400W Power Supply

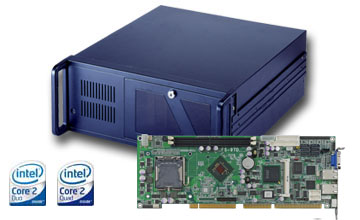

4U Rackmount Core 2 Duo / Quad DDR II Multiple PCI Platform

- Value Intel® CoreTM  2 Duo / CoreTM  2 Quad DDR II Industrial PC Platform
- Intel® CoreTM  2 Duo / CoreTM  2 Quad @ 800/1066/1333 MHz FSB
- 4 GB DDR II 667/800 SDRAM
- GMA3100 with 3-D enhancements enable greater flexibility and scalability
- Intel Q35 with Express Chipset , Optional DVI or LVDS interface

- On Board 2 x Intel® 82573L Gigabit LAN

- On Board HD Audio Interface, USB 2.0 Interface

- On Board 6 x SATA with RAID function , Mini-PCI socket Interface

400W Power Supply

Back-to-Top

  Rackmount Low Profile Server

1U Rackmount Core™ 2 Duo processor with socket-P PCI Platform
- Intel® Core™ 2 Duo processor with socket-P DDR III Industrial PC Platform
- Intel® Core™ 2 Duo processor with socket-P @ 667/800/1066 MHz FSB
- 2 x 204-pin DDR III SO-DIMM 800/1066MHz up to 8GB
- Intel® Extreme Graphic 2 Technology
- Onboard Dual Channel 18/24-bit interface for LVDS
- Onboard 2 x Intel® 82574L Gigabit LAN
- Onboard add DVI, HDTV……….
- Onboard Compact Flash Type II Socket
2U Rackmount support Dual Computer System

- Intel® Core i7 / i5 / i3 Mobile processor in 988A
- Intel® QM57 Express chipset
- DDR3 800/1066 SO-DIMM support up to 8GB
- 2 x Intel® Gigabit Ethernet
- Support 1 x PCI-Express X16 slot
- VGA , COM , USB , HD Audio
- DC 9V ~ 24V input



Back-to-Top



Wallmount Industrial Multiple PCI/ISA Workstation Platform

Wallmount Core 2 Duo / Quad DDR II  Multi-PCI IPC Platform


- Value Intel® CoreTM  2 Duo / CoreTM  2 Quad DDR II Industrial PC Platform
- Intel® CoreTM  2 Duo / CoreTM  2 Quad @ 800/1066/1333 MHz FSB
-  4 GB DDR II 667/800 SDRAM
- Intel® Built-in Extreme SVGA Interface with 256-bit 3D Engine
- OnBoard 2 x Intel® 82573L Gigabit LAN
- On Board HD Audio Interface
- Onboard High Speed USB 2.0 Interface
- Onboard M-systems DiskOnChip Solid State Disk Interface
- Onboard Intel PCI-to-PCI Bridge
- External 2 x 5.25" / 1 x 3.5" and Internal 1 x 3.5" Driver Bay
- Optional 7 x PCI Expansive Slots

Back-to-Top

Mini-Server / Workstation Terminal Platform



CMB-B72 (Discontinued)

Fanless barebone system with COMMELL 3.5" SBC support ntel® 6th generation "Skylake-H" Core™ i7/i5/i3 processor, DDR4 up to 32 GB ,

Display Port, 2 x Giga LAN , USB , COM , HD audio, PCI-Express X16 slot,

2 x PCI slot or 1 x PCI slot + 1 x PCIe X1 slot



CMB-67M-02 (Discontinued)

Mini Barebone system support 4th generation Intel® Core™  i7/i5/i3 or Celeron™ 2002E mobile processor, DDR3L up to 16 GB,  DVI & Display Port, 2 x Giga LAN, COM, USB, HD audio, PCI-Express X16 slot



CMB-67M-01

Mini Barebone system support 4th generation Intel® Core™  i7/i5/i3 or Celeron™ 2002E mobile processor , DDR3L up to 16GB, DVI & Display Port, 2 x Giga LAN, COM , USB, HD audio , PCI-Express X16 slot

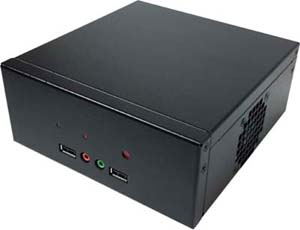

CMB-D70

Nano-ITX barebone system support Intel® Celeron™ J1900/N2930, Atom ™

E3845, DDR3L up to 8 GB, Display port, DVI, VGA, Giga LAN , USB, COM, HD

audio

CMB-67H-02 /CMB-67K-02 (Discontinued)

Mini Barebone system support 2nd /3rd generation Intel® Core™  i7/i5/i3

Mobile processor, DDR3 up to 16 GB, VGA & DVI, 2 x Giga LAN, USB , HD audio

CMB-67H-01/CMB-67K-01/CMB-67G-01/CMB-67J-01

Mini Barebone system Intel® Core™  i7/i5/i3 processor , DDR3 up to 16GB, VGA & DVI, 2 x Giga LAN, COM , USB, HD audio , PCI-Express X16 slot



CMB-67C

Chassis supports Mini-ITX Motherboard with Intel® Core™ Core™ i7/ i5/ i3/ Pentium desktop processor, DDR3 up to 8GB, VGA,  2 x Giga LAN, COM, USB, COM, HD audio, SPDIF, PCI-Express X16 slot

CMB-67F/CMB-67B

Barebone system support Intel® Core™ i7 / i5 / i3 Mobile processor , or  Intel® Core2 Quad / Duo , Celeron Mobile processor.

1 x Slim CD-ROM, 1 x 2.5" HDD drive bay, PCI-express X16 slot

CMB-679D

Mini-ITX Barebone support Intel® Core™ 2 Duo @ 800 MHz FSB processor, VGA & 2 x DVI connector, 1 x PCI expansion space.

CMB-677DC

Mini-ITX Barebone support Intel® Core™ 2 Duo / Core Duo processor, VGA & DVI connector, 2 x Mini-PCI expansion space.

CMB-678/677/674/672

Chassis supports Mini-ITX Motherboard with Intel® Core™ 2 Quad / Core™ 2 Duo / Pentium D / Pentium 4 / Celeron D Mini-ITX Motherboard

CMB-673

Mini-ITX Barebone with Support Intel® Pentium M / Celeron M,

PCMCIA & CF socket, 1 x PCI-Express slot.

CMB-671MPCM6

Mini-ITX Barebone with Intel® Celeron M 600MHz CPU, CF, PCMCIA socket, 1 x PCI room for PCI or Mini-PCI/Mini-AGP.

CMB-671

Mini-ITX Barebone support Intel® Pentium M / Celeron M CPU, CF, PCMCIA socket, 1 x PCI room for PCI or Mini-PCI/Mini-AGP.





CMB-670( Discontinued )

Palm size Pentium 4 Barebone, Intel ® Extreme Graphics, TV-out, S-Video Interface, IEEE 1394, LAN, 5.1 Channel Audio/SPDIF, USB 2.0

CMB-575

CMB-575 based on Intel® 945GSE & ICH7M chipset ,

supports 4 x RJ45 LAN, 1 x DC input, 4 x COM, 4 x USB, 1 x VGA,

1 x LPT, 1 x Key/Mouse, Line-out / Mic-In, 1 x Antenna, 1 x DVI

CMB-574/CMB-576

CMB-574 based on Intel® QM67 chipset, support Intel® 2nd generation

Core™ i7/ i5/ i3/ Mobile processor with 6 x RJ45 LAN , 6 x COM , 1 x LPT

VGA & DVI , DC 9V ~ 24V input

-----------------------------------------------------------------------------------------------------------

CMB-576 based on Intel® QM77 chipset, support Intel® 3rd generation

Core™ i7/ i5/ i3/ Mobile processor with 6 x RJ45 LAN , 6 x COM , 1 x LPT

VGA & DVI , DC 9V ~ 24V input

CMB-573

CMB-573 based on Intel® GM45 chipset, supports 6 x RJ45 LAN,

1 x DC input, 6 x COM, 4 x USB, 1 x VGA, 1 x LPT, 1 x Key/Mouse,

Line-out / Mic-In, 1 x Antenna, 1 x DVI

CMB-570E

CMB-570 based on Intel® 945GME chipset , support Intel® Core™ 2 Duo Mobile processor , 4 x Intel® Giga LAN , 4 x COM ,4 x  USB , DC 8~24V

CMB-565

CMB-565 with VIA Eden 1.0 GHz CPU, onboard optional 256 MB DDR,

4 x Giga LAN , 4 x COM , 4 x USB , CompactFlash ,  DC 12V input

CMB-564

CMB-564 with VIA Eden 533 MHz CPU, onboard 128 MHz SDRAM, 4 x fast LAN , COM , USB , CompactFlash ,  DC 5V input



CMB-37E

Fanless barebone system with COMMELL 3.5" SBC support Intel® Broadwell

(5th) / Haswell (4th) Core™ Mobile U-series  processor, DDR3L up to 8 GB ,

Display port , 2 x Giga LAN , USB , COM , HD audio



CMB-37D

Fanless barebone system with COMMELL 3.5" SBC support Intel® Celeron™

J1900/N2930 , Atom ™ E3845, DDR3L up to 8 GB , Display port , DVI , 2 x Giga

, LAN , USB , COM , HD audio

CMB-37C

Fanless barebone system with COMMELL 3.5" SBC support 4th generation

Intel® Core™ i7i5/i3 , Celeron ™ 2002E , DDR3L up to 8 GB , Display port , DVI

, 1 x Giga LAN , USB , COM , HD audio

CMB-37B

Mini Barebone system support 3rd generation Intel® Core™  i7/i5/i3

Mobile processor , DDR3 up to 8.0 GB , 1 x Giga LAN , Mini-PCIe

sockets , COM , USB , Audio , 9V ~ 24V DC input



CMB-379

Mini Barebone system support Intel®  Atom™ CedarTrail processor,

DDR3 up to 4 GB , VGA & DVI,  Giga LAN, HD audio, 5 x Serial Port,

4 x USB

CMB-378

Mini Barebone system support 2nd generation Intel® Core™  i7/i5/i3

Mobile processor , DDR3 up to 8.0 GB , 1 x Giga LAN , Mini-PCIe

sockets , COM , USB , Audio , 9V ~ 24V DC input

CMB-377

Mini Barebone system support Intel® Core™  i7/i5/i3 Mobile processor,

DDR3 up to 4.0 GB, support 1x 2.5" HDD, 9V ~ 24V DC input

CMB-376

Mini Barebone system support Intel®  Atom™ D525 processor,

DDR2-667 up to 4 GB , VGA ,  Giga LAN, HD audio, 6 x Serial Port,

3 x USB

CMB-374/371/370/365

Fanless barebone system with COMMELL 3.5" SBC for Intel® Atom™, Core™ 2 Duo, Intel® Pentium M / Celeron M, VIA solution

CMB-173

Barebone system support Intel® Celeron™ J1900 / N2900, or Atom™ E3845 Dual- core processor , 1 x 2.5" HDD drive bay, PCI-express mini card socket

CMB-172

Barebone system support Intel® Atom™ D2550 or N2800 Dual- core processor , 1 x 2.5" HDD drive bay, PCI-express mini card socket

CMB-171

Barebone system support Intel® Atom™ Z510P single core processor ,

1 x CF socket, PCI-express mini card socket

CMB-170

Barebone system support Intel® Atom™ D525 dual-core processor ,

1 x CF socket, 1 x 2.5" HDD drive bay, PCI-express mini card socket

Back-to-Top
