CMB-37B

Mini barebone system support  Intel® Core™  i7/ i5/i3 Mobile processor

-

Overview

-

Features

- Product Image
- Ordering Guide
- Datasheet
  - User's Manual

Overview

　

COMMELL's CMB-37B is a high-performance Mini barebone systems which support 3rd generation Intel® Core™  i7/i5/i3 Mobile processor in PGA 988B, CMB-37B come with 2 x Mini-PCIe expansion slots to allow customer to add Mini-PCIe cards without modify case, Such as Ethernet, serial port, IEEE 1394, Wifi card ....especial in power input source, CMB-37B support DC 9V ~ 24V input, therefore, CMB-37B is suitable for industrial application like industrial  control and automation, retail, gaming, print imaging .......

BackToTop

Features

dh
Form Factor  Mini barebone system
Construction  Heavy-Duty steel
3.5" board / CPU

 Inside Motherboard : LS-37B / LS37BS

 Support CPU : 3rd generation Intel® Core™  i7/i5/i3 mobile processor

Memory  1 x DDR3 1066/1333/1600 SO-DIMM support up to 8.0 GB
Drive Bay

 1 x internal 2.5" HDD Space. Shock-resistant
Extensive slot

 1 x PCI bracket space for Mini-PCIe daughter board
Thermal Control  One 5 cm system cooling Fan

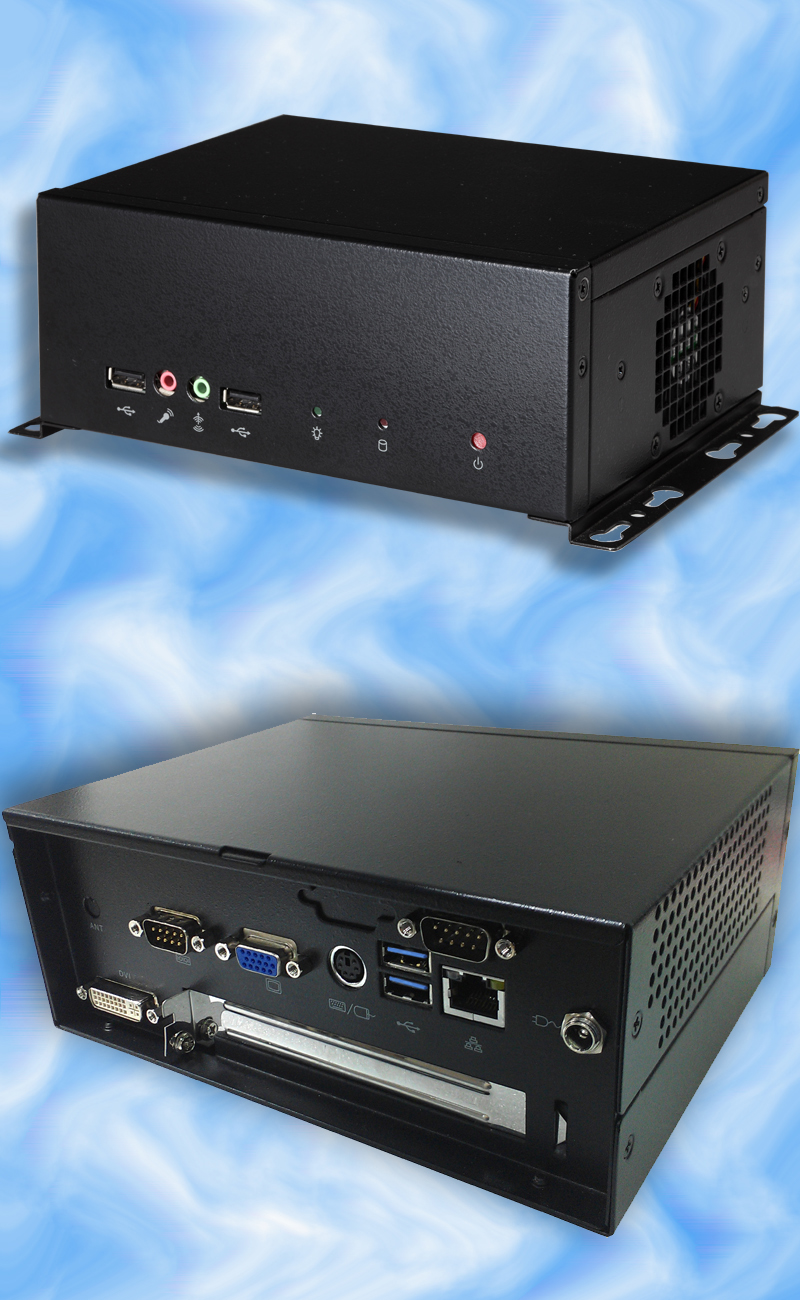

Front Panel

 Power On / Off switch

 LED for Power On/Off and HDD activity

 2 x USB ports

 Mic-in / Ear phone
Rear Side I/O

 1 x PS/2 Keyboard/Mouse

 1 x VGA

 1 x DVI

 2 x COM

 2 x USB 3.0

 1 x RJ-45 Intel® Giga LAN

 1 x DC input

 1 x cutout for antenna
Environment  Operating Temperature: 0 ~ 40ºC
Power supply  9V ~ 24V DC input  ( Ship with 19V/120W adapter )
Dimension  190 x 150 x 75 mm

BackToTop

Ordering Guide


CMB-37B

Barebone with LS-37B SBC , 120W PSU & CPU cooling Fan

Processor

Intel® Core™  i7/ i5 / i3 mobile processor

Memory

DDR3 1066/1333/1600 SO-DIMM for 1.0GB / 2.0 GB / 4.0 / 8.0 GB

Storage device

2.5" SATA HDD for 160GB , 320GB , 500GB

BackToTop
