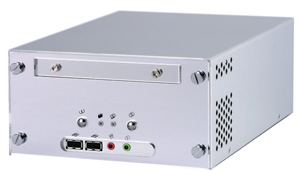

CMB-670


Mini-ITX Chassis with DC-DCIN & 120W adapter .

-

Overview

-

Features

- Product Image
- Ordering Guide
- Datasheet

Overview



COMMELL's CMB-670 is a Mini-server / terminal platform .the CMB-670 provides the high reliability solution with high performance and integration. With these features, CMB-670 should be the advanced solution for you in :

  • Industrial Embedded Applied Mini-Server, Transaction Station, POS/POI, KIOSK, ATM, Web Payphone and Terminal Platform

  • 3D Video Game Machine, STB (Set-Top-Box), Multi-Media Station and Terminal, Book-size PC, Thin Client, Internet Computer, WebPAD,

  • Industrial Panel PC, Portable Workstation, Panel-mount / Wall-mount / Ceil-mount Workstation

BackToTop

Features

dh
Form Factor  Mini-ITX barebone system
Construction  Heavy-Duty steel
Mini-ITX Board  Inside Motherboatd can be :

 LV-670: Intel Pentium 4 / Celeron

Drive Bay  External 1 x Slim CD-ROM Space

 Internal  1 x 3.5" HDD Space

Riser card  No
Thermal Control  Two system cooling
Front Panel  System Reset switch

 Power On/Off and HDD activity

 2 x USB ports

 Audio ports

Rear Side I/O PS/2 Keyboard and mouse, TV-out,  parallel port ,Dual USB,LAN,IEE1394,5.1 CH Audio,1 x COM
Environment  Operating Temperature: 0 ~ 50C
Power supply  120W adapter
Dimension  260 x 178 x 88  mm
Weight  3.4 kgw , (Without , HDD, CD-ROM)

BackToTop

Ordering Guide


  CMB-670 LV-670 , Chassis , 120W adapter , DC-DCIN module
