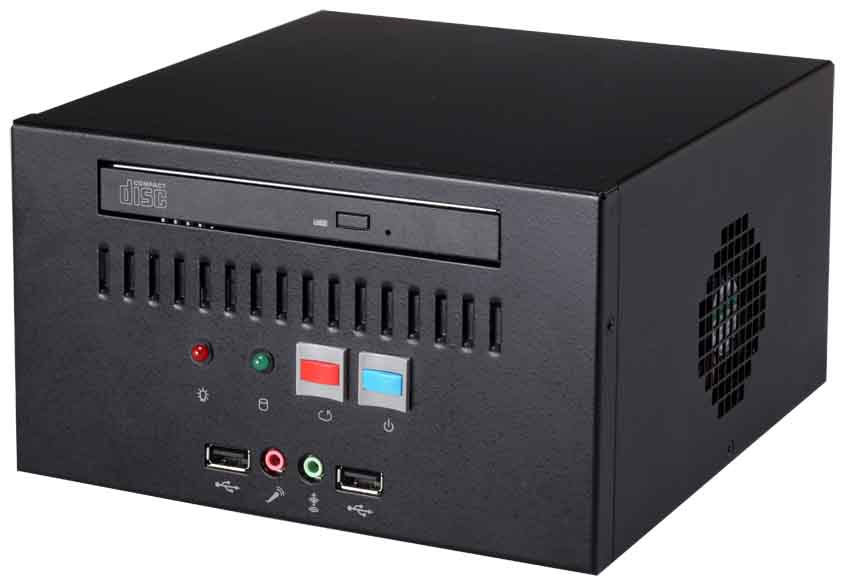

CMB-67F
Mini-ITX
barebone system support Intel® Core™ i7/ i5/i3 Mobile processor
|
Overview
|
COMMELL's
CMB-67F is a high-performance systems
support Intel® Core™
i7/i5/i3 Mobile processor, suitable for industrial
application like industrial control and
automation, retail, gaming, print imaging ......., the
CMB-67F come with Mini
PCI, Mini PCIe and PCIE slots, easily using any other
add-on cards, Like Wifi card , Capture card , COM card
...
|
BackToTop |
Features
|
dh
Form Factor |
Mini-ITX
bare-bone system |
Construction |
Heavy-Duty
steel |
Mini-ITX Board /
CPU |
Inside
Motherboard : LV-67F
series
Support
CPU : Intel® Core™ i7/i5/i3 mobile with integrated
graphic
|
Drive Bay |
External : 1 x
Slim CD-ROM Space
Internal
: 1 x 2.5" HDD Space |
Extensive slot |
1
x PCIE x16 slot
(
Re-check the power consumption & physical issue before
purchase )
1
x slot room for Mini-PCI
or Mini-PCIe daughter board
|
Thermal Control |
One 6 cm
system cooling Fan |
Front Panel |
Power
on switch
System Reset
switch
LED
for Power
On/Off and HDD activity
2
x USB ports
Mic-in
/ Ear phone
|
Rear Side I/O |

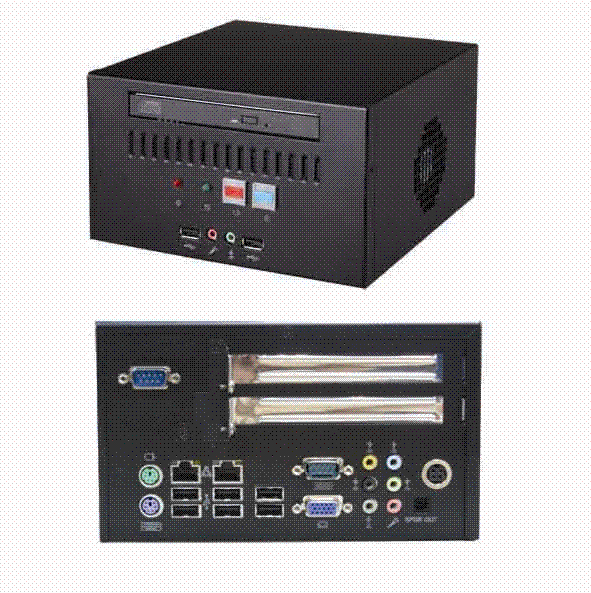

CMB-67FX

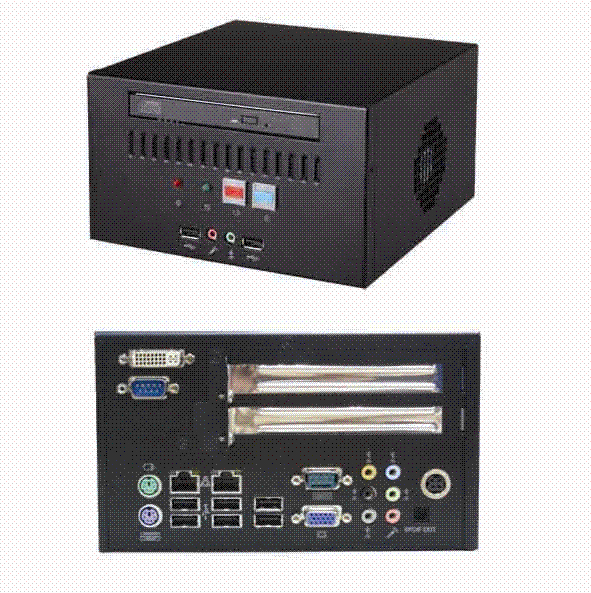

CMB-67FXD
CMB-67FXT
|
Environment |
Operating
Temperature: 0 ~ 40ºC
|
Power supply |
12V/ 80W adapter
with 4-pin Mini DIMM |
Dimension |
199 x 189 x
110 mm |
Weight |
1.31 kgw
, (Without HDD, CPU cooler ) |
|
BackToTop |
Ordering Guide
|
|
CMB-67FX
|
Barebone
with LV-67FX motherboard , 12V/80W adapter , PCIe
riser card
|
CMB-67FXD
|
Barebone
with LV-67FXD motherboard , 12V/80W adapter , PCIe
riser card
|
CMB-67FXT
|
Barebone
with LV-67FXT motherboard , 12V/80W adapter , PCIe
riser card
|
Processor
|
Intel®
Core™ i7 / i5 / i3 mobile processor
|
Memory
|
DDR3
800/1066 SO-DIMM for 1.0GB / 2.0 GB / 4.0 GB
|
Storage
device
|
SATA
HDD or Solid State Disk for SATA / Mini-PCIe
|
