LV-67F
Intel® Core™ i7 / i5 / i3 Mobile  Mini-ITX Motherboard

Support Intel® Core i7 / i5 / i3 / Mobile CPU with Mobile Intel® QM57 Express
8GB DDR3, 2 x Giga LAN, 10 x USB 2.0, 2 x COM, 6 x SATA, HD Audio
PCI-Express X16 slot, Mini-PCIe & Mini-PCI socket, ATX P/S or DC 9 ~ 24V input

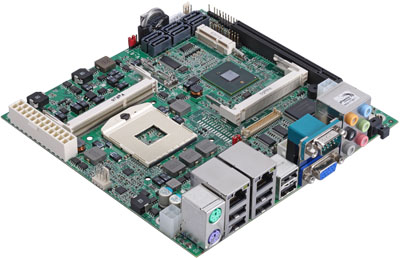

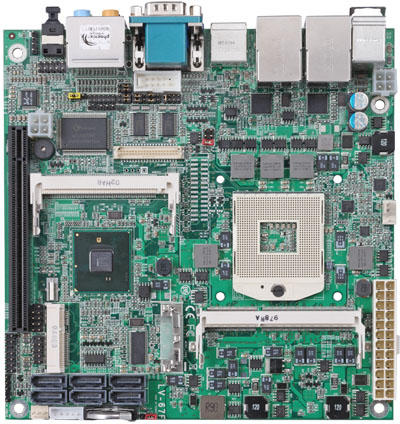

view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

COMMELL's  LV-67F Mini-ITX mainboard is provided for up to 8GB of DDR3 800/1066 MHz data transfer rate dual-channel system memory, 1-GB and 2-GB DDR3 DRAM technologies are supported for x8 and x16 devices. When along with Intel 32nm Core i7/i5/i3 processor that provided  Intel HD graphic function with Dynamic Video memory Technology, MPG2/WMV9/VC1/AVC hardware acceleration, advanced pixel adaptive De-Interlacing and High quality Scaling, additional display features include 24-bit dual channel LVDS and DVI interface optional.

The LV-67F comes with PS/2 Keyboard and Mouse, 1 x RS232C and 1 x RS232/422/485, Networking is provided by Intel 2 x 82574L Giga LAN, 10 x USB2.0 ports, It offers support for Intel High Definition Audio enables increased bandwidth for high quality audio.  Also support for eSATA enables the full SATA interface speed up to 3GB/s, support for RAID 0,1,5, and 10 enables high reliablity for personal data, or maximum storage performance for intensive applications. Mini PCI, Mini PCIe and PCIE slots easily using any other add-on cards.



BackToTop

  Key Feature
  • CPUIntel® Core™ i7/ i5/ i3/ Mobile in the rPGA988A socket

  • MemoryTwo DDR3 800/1066 MHz up to 8.0 GB

  • Chipset: Mobile Intel® QM57 Express chipset

  • Display Interface: Integrated Intel HD graphics Controller (depends on CPU)

  • LVDS interface: 24-bit dual channel LVDS interface

  • DVI interface: Optional DVI interface (LV-67FXD)

  • LAN Interface2 x Intel® 82574L Giga LAN.

  • Serial ATA: Support 6 x SATAII up to 300MB/s with RAID 0,1,5,10.

  • Audio: Intel® QM57 integrated with Realtek ALC888 High Definition Audio.

  • I/O ports: 1 x RS232 and 1 x RS232/422/485 Serial Ports, 10 x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports.

  • Extended interface: PCI-Express X16 slot, Mini-PCIe & Mini-PCI socket.

  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.

  • Power requirement : Standard ATX P/S or DC 9 ~ 24V input

BackToTop

  Specification


Form Factor

Mini-ITX Motherboard

Processor

Intel® Core i7 / i5 / i3 Mobile processor

Package Type: rPGA988

Memory

2 x DDR3 800/1066 SO-DIMM up to 8GB

Chipset

Mobile Intel® QM57 Express chipset

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

ACPI 2.0 compliant

Serial ATA Interface

6 x Serial ATA II interface up to 300MB/s.Support RAID 0/1/5/10

VGA Interface

Integrated Intel® HD graphics Controller (depends on CPU).

LVDS Interface

24-bit dual channel LVDS interface

 DVI Interface  Optional DVI interface (LV-67FXD)

Audio Interface

Intel® integrated QM57 with Realtek ALC888 HD Audio

LAN Interface

2 x Intel® 82574L Gigabit Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

PCI-Express X16 slot, Mini-PCIe & Mini-PCI socket.

Internal I/O Port

1 x RS232/422/485, 1 x GPIO, 1 x CDIN, 1 x SMBus,

1 x Audio, 1 x IrDA, 4 x USB2.0

External I/O Port

1 x PS/2 keyboard/mouse, 2 x RJ45 LAN, 1 x VGA, 6 x USB2.0,

1 x Audio, 1 x RS232, 1 x SPDIF

Power Requirement

Standard 20-pin ATX power supply or DC 9 ~ 24V input

Board Dimension

170mm x 170 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LV-67FX

Mini-ITX support Intel® Core i7 / i5 / i3 Mobile processor with 2 x Giga LAN, COM, USB, SATA,  onboard 1 x VGA , 1 x 24-bit LVDS

LV-67FXD

Mini-ITX support Intel® Core i7 / i5 / i3 Mobile processor with 2 x Giga LAN, COM, USB, SATA, onboard 1 x VGA , 1 x 24-bit LVDS , 1 x DVI

LV-67FXT

Mini-ITX support Intel® Core i7 / i5 / i3 Mobile processor with 2 x Giga LAN, COM, USB, SATA, onboard 2 x VGA , 1 x 24-bit LVDS

CMB-67F

Barebone system for LV-67F w/ 12V/80W adapter, 1 x PCIe riser card

MPX-7202

Mini-PCIe module support 2 x USB 3.0

MPX-954

Mini-PCIe module support 4 x RS-232

MPX-643

Mini-PCIe module support 1 x IEEE 1394A + 2 x IEEE 1394B
