CMB-564
Barebone
with VIA Eden 533 MHz , onboard 128 MB Memory and 4 x LAN
|
Overview
|
COMMELL's
CMB-564 is a compact 5.25" drive-size embedded
multiple Ethernet platform based on VIA Eden low power
CPU, and offers the Intel PRO/1000 GbE and four Ethernet
interfaces for industrial multiple Ethernet application,
such as firewall, VPN and all-in-one server solution.
The CMB-564's compact size, fan free operating, optional
Intel PRO/1000 MT GbE, Intel PRO/100+ and RTL 10/100
Mbps Fast Ethernet interfaces, bootable CompactFlash
socket also provide the suitable hardware solution for
the small business / SOHO firewall / VPN market and
all-in-one internet server application.
|
BackToTop |
Features
|
dh
Form Factor |
5.25"
Barebone |
Construction |
Heavy-duty
Steel |
Mini-ITX Board |
Inside
Motherboard can be :
LE-564E5R-128
: Onboard VIA Eden 533 MHz
LE-564E5G-128
: Onboard VIA Eden 533 MHz
|
Drive Bay |
Internal
1 x CompactFalsh Card Space |
Riser card |
No |
Thermal Control |
No |
Front Panel |
Power
On/Off and HDD activity LED 4
x LED for LAN status
|

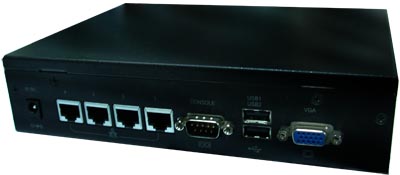

Rear Side I/O |
4
x RJ45 LAN , 1 x DC input , 1 x COM , 2 x USB , 1 x VGA |
Environment |
Operating
Temperature: 0 ~ 50C
|
Power supply |
DC 5V input |
Dimension |
210 x 48 x
152 mm (W x H x D) |
Weight |
1.01 kgw
, (With Case , Motherboard ) |
|
BackToTop |
Ordering Guide
|
|
CMB-564E5R-128
|
Barebone
with VIA Eden 533 MHz , onboard 128 MB
Memory
and
4 x 10/100 LAN
|
CMB-564E5G-128
|
Barebone
with VIA Eden 533 MHz , onboard 128 MB
Memory
and
3 x 10/100 LAN & 1 x 10/100/1000 LAN
|
