CMB-67M-01

Mini barebone system support  4th generation Intel® Core™  i7/i5/i3  or Celeron™  2002E Mobile processor

-

Overview

-

Features

- Product Image
- Ordering Guide
- Datasheet
  - User's Manual

Overview

    The product is a high-performance Mini-ITX barebone systems which support Intel® Core™  i7/i5/i3  or Celeron ™ 2002E Mobile processor , this  comes with 1 x PCI-Express X16 slot &  2 x Mini-PCIe expansion slots to allow customer to add Mini-PCIe cards without modify case, Such as Ethernet, serial port, IEEE 1394, Wifi card. suitable for industrial application like industrial  control and automation, retail, gaming, print imaging .......

BackToTop

Features

dh
Form Factor  Mini barebone system
Construction  Heavy-Duty steel
Mini-ITX Board / CPU

 Inside Motherboard : LV-67M

 Support CPU : 4th generation Intel® Core™ i7/i5/i3 or Celeron™  2002E mobile processor

Drive Bay

 1 x internal 3.5” HDD or 2 x internal 2.5” HDD space or

 2 x external 2.5” HDD space by drive cage
Extensive slot

 1 x PCI-Express X16 slot , 2 x Mini-PCIe sockets
Thermal Control  1 x  6 cm system cooling Fan
Front Panel

 Power On / Off switch

 LED for Power On/Off and HDD activity

 2 x USB ports

 Mic-in / Ear phone

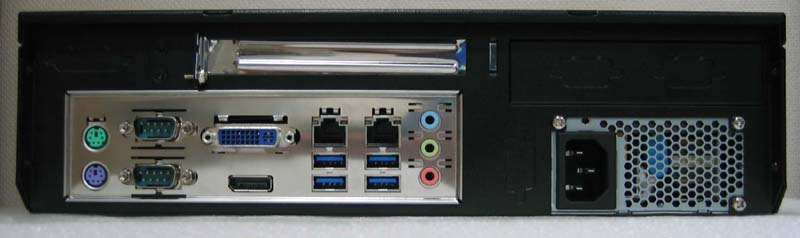

Rear Side I/O

 1 x PS/2 Keyboard/Mouse

 1 x DVI

 1 x Display Port

 1 x RS232/422/485 + 1 x RS232

 4 x USB 3.0

 2 x RJ-45 Intel® Giga LAN

 1 x 2.1 ch Audio

 1 x cutout for VGA

 2 x cutout for DB9 COM port ( Can't be used when use 3.5" HDD or

 external 2.5" HDD )

 1 x cutout for antenna
Environment  Operating Temperature: 0 ~ 40ºC
Power supply  250 watt power supply
Dimension  300 x 220 x 80 mm

BackToTop

Ordering Guide


CMB-67M-01

Barebone with LV-67M CPU Fan, 250W power supply & PCIe riser card

Processor

Intel® Core™  i7-4700EQ / i5-4402E / i3-4102E or Celeron™ 2002E mobile processor

Memory

Two DDR3L 1333/1600 SO-DIMM for 1.0GB / 2.0 GB / 4.0 / 8.0 GB





BackToTop
