LV-67M

4^th / 5^th generation Intel® Core™ i7 / i5 / i3 & Celeron® processor (Haswell / Broadwell)

 Mini-ITX Motherboard

Support  4^th / 5^th generation  Intel® Core^™ i7 / i5 / i3 & Celeron® Mobile CPU with

Intel® QM87 Express, DDR3L SO-DIMM up to 16GB, Onboard VGA & DVI, LVDS,

DisplayPort, 2 x Giga LAN, 4 x USB 2.0, 6 x USB 3.0, 6 x COM, HD Audio, GPIO,

 4 x SATAIIl with RAID,PCIe X16, 2 x Mini-PCIe socket.

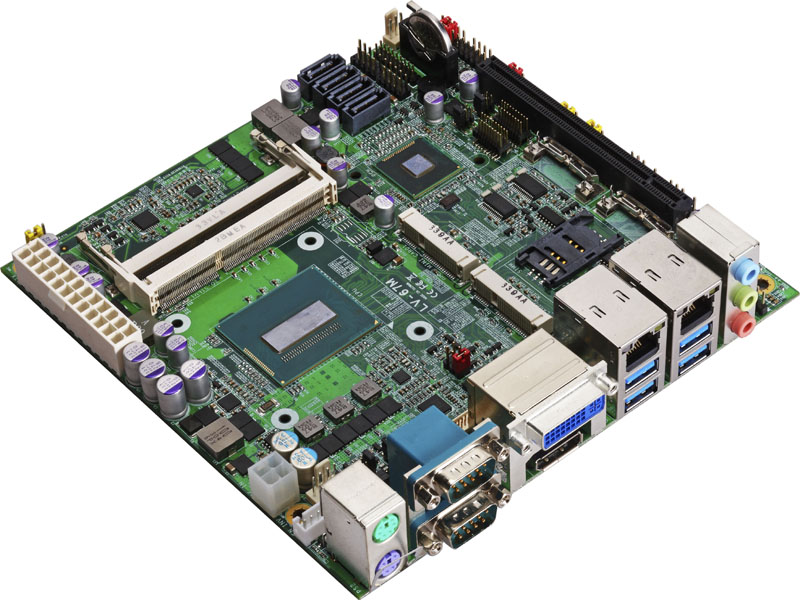

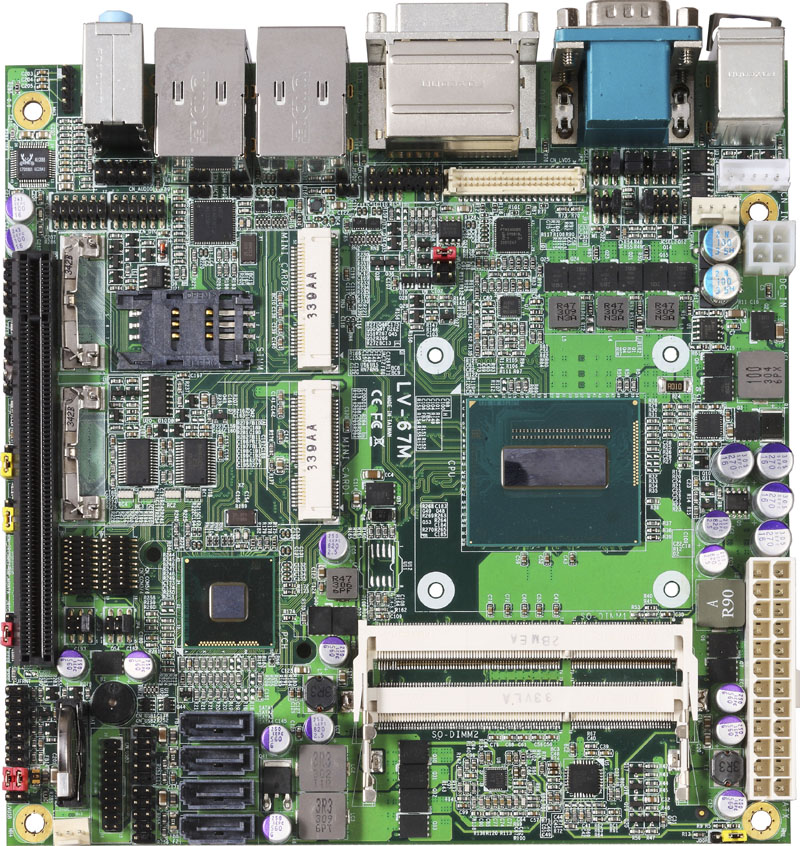

view larger image
	-	Overview
	-	Feature
	-	Specification
	-	Product Image
	-	Ordering Guide
	-	Datasheet (PDF format)
	-	Technical Document

  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched a Mini-ITX form factor LV-67M embedded system board with the Intel® QM87 Express chipset, which adopts the 4^th / 5^th generation Intel® Core™ i7/i5/i3 , Celeron Mobile Processor family (formerly known as “Haswell / Broadwell”, manufactured on 22nm processor technology). The COMMELL LV-67M platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defense, transportation and industrial automation application

The LV-67M Mini-ITX is designed for the 4th/5th generation Intel® Core™ i7/i5/i3 , Celeron Mobile Processors in the FCBGA1364 supporting two DDR3L SO-DIMM up to 16GB and running 1333/1600 Mhz No ECC function. The platform is based on Intel® HD Graphics 4600 that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. In addition, LV-67M supports VGA, LVDS, DVI-I and one DP port to provide its advanced solutions for imaging, machine vision and digital signage applications.

LV-67M offers lots of features including high-speed data transfer interfaces such as 6 x USB3.0 and 4 x SATAIII supported RAID 0/1/5/10, equipped with dual Gigabit Ethernet with iAMT 9.0 supported, and comes with PS/2 Keyboard and Mouse port, 5 x RS232 and 1 x RS232/422/485, 4 x USB2.0, Intel® High Definition Audio, and 1 x PCI Expressx16 slot, 2 x PCIE Mini card socket
