Power Input :
|
|
|
19V DC power input ( MAX 120W)
|
|
|
Onboard 4-pin Mini DIN power connector
|
|
|
Or Internal 3-pin wafer
|
|
-
|
Power
output :
|
|
|
| |
Current |
Power output |
| 5VSB |
1.5 A |
7.5 W |
| +3.3 |
5 A |
16.5 W |
| +5 |
5 A |
25 W |
| +12 |
6 A |
72 W |
| -12 |
0.1 A |
1.2 W |
|
|
|
|
|
-
|
Operating Temperature : 0 ~ 45ºC
|
|
-
|
Dimension : 100
x 70 x 23 mm ( L x W x H )
|
|
|
|
|
Ordering Guide
|
|

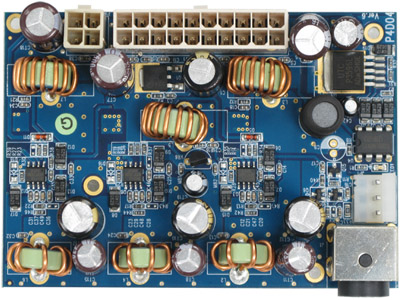

P4D04
|
19V / 120W DC-DC Power
Converter with 4-pinMini DIN
|
|
SPD-150-19B
(RoHS
Compliant)
|
19V
/ 150W
adapter with 4-pin Mini-DIN for P4D04 power converter
|
|

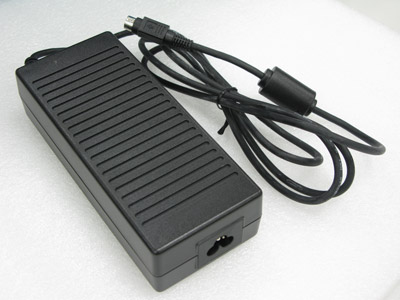

SPD-120-19B
(Non-RoHS)
|
19V
/ 120W
adapter with 4-pin Mini-DIN for P4D04 power converter
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
