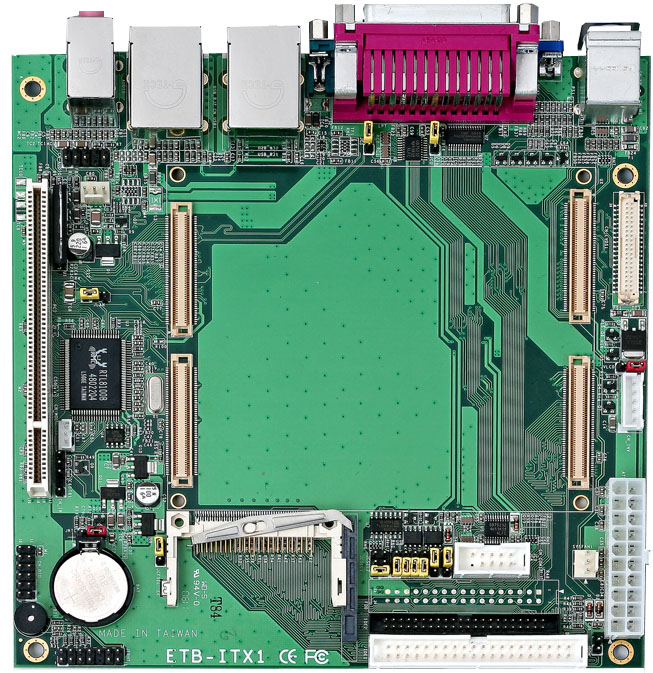

Board
Size ETX
Baseboard ( 170 x 170 mm )
Chipset
Realtek8100B
for Ethernet
Battery Lithium
Battery for real time clock
Power
Requirement Standard
20-pin ATX power supply Extended
Interface 1
x PCI slot 1
x CompactFlash socket Internal
I/O Ports 1
x RS232/422/485 port 1
x IrDA connector 1
x GPIO port 1
x 40-pin IDE connector 1
x LVDS and LCD inverter connector 1
x Audio Front Panel with Amplified Speaker out & MIC-in 1
x 20-pin ATX power connector 1
x 40pin & 1 x 44-pin IDE connector External
I/O Ports 1
x PS2 Keyboard/Mouse port 1
x DB9 series port 1
x DB25 LPT port 1
x DB15 CRT port 4
x USB2.0 ports 2
x RJ45 LAN port 1
x 3 port phone jack
|
