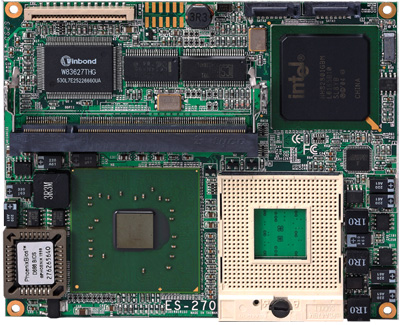

Board
Size 114
x 95 mm
CPU
Type
Intel
CoreTM Duo / Core 2 Duo Merom with Socket M @ 533 /
677 MHz FSB.
Chipset
Intel
945GME & ICH7M
Memory
Type
1
x 200-pin DDRII SO-DIMM support up to 1.0 GB .
VGA
Interface Intel
945GME integrated extreme GMA 950 technology LVDS
Interface 18/24-bit
Dual channel LVDS interface. Enhanced
IDE UltraATA33/66/100
IDE up to 2 ATAPI . Series
ATA Integrated
Series ATA controller facilities high-speed data transfer up
to 150MB/s for each of 2 ports . LAN
Interface Intel
82562GT PHY 10/100Base-T LAN Audio Realtek
ALC655 Audio USB 4
x Hi-Speed USB2.0 ports . I/O
ports 2
x Serial Ports , Parallel , IrDA , FDD , PS/2 keyboard/mouse . PCI
Support
4 x PCI bus master interface . Watchdog Generates
system reset with internal timer of 1min ~ 255 min/s
|
