Intel® Core™2 Quad / Core™2 Duo Desktop mATX Motherboard
Support Intel® Core™ 2 Quad with DDR3, onboard VGA, 2 x Gigabit LAN,
12 x USB2.0, Realtek ALC888 HD audio, 6 x COM & SATA, GPIO, ISA
|
Overview
|
|

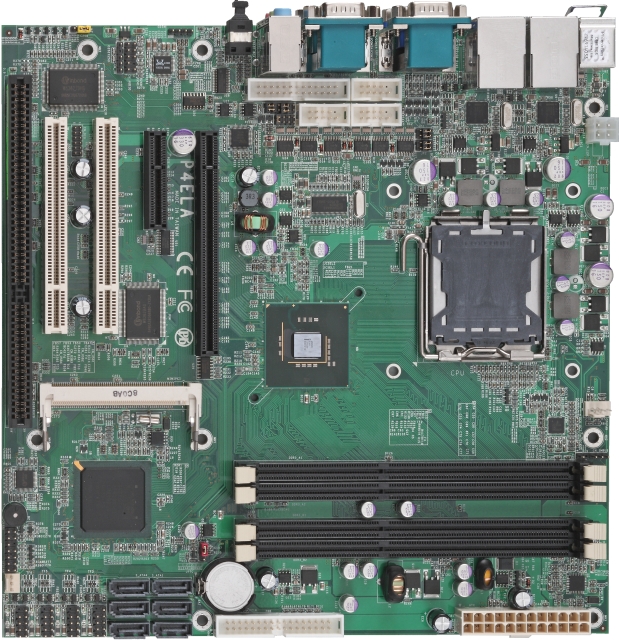

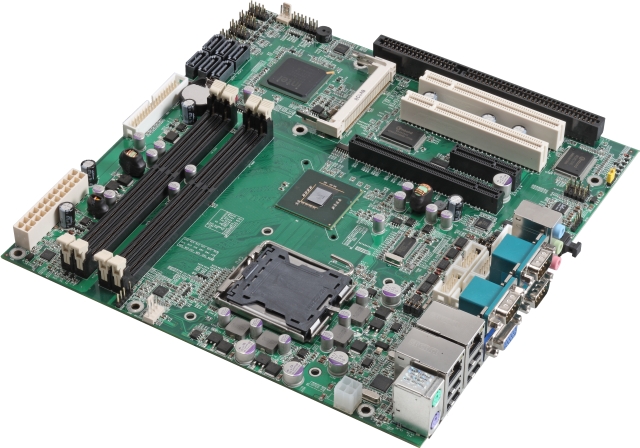

P4ELA
platform based on Q45 Express chipset, is ideal for
developing high-performance systems, industrial
workstation, industrial control and automation, retail
and hospitality, gaming, print imaging, digital signage,
digital surveillance and network security applications.
P4ELA
has a built-in Intel Graphics Accelerator 4500 that
delivers excellent blend of graphics performance and
features, supports Microsoft DirectX 10 and OpenGL 2.0
enabling support for the highest levels of Windows Vista
experience. The Graphic Memory Controller Hub
incorporates an updated backbone architecture that
optimizes available bandwidth with the 1333MHz system
bus.
|
|
BackToTop |
Key Feature
|
-
CPU: Intel®
Core™ 2 Quad/Core™ 2 Duo/Celeron processors @ FSB
800/1066/1333MHz by the LGA775 socket pin-out.
-
Memory: 4
x DDR3 800/1066MHz DIMM up to 8GB.
-
Chipset:
Intel® Q45 & ICH10DO.
-
VGA:
Intel® integrated extreme GMA 4500 technology.
-
LAN:
2 x Intel® 82574L Giga LAN.
-
Audio:
Integrated ICH10DO with Realtek ALC888 HD Audio.
-
Serial
ATA:
Support 6 x SATAII interface up to 300MB/s transfer
rate. Support RAID 0, 1, 5, 10 and Intel® Matrix Storage Technology.
-
I/O
Ports:
5 x RS232 and 1 x RS232/422/485 Serial Ports, 8 x USB2.0 ports,
1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports.
-
Expansion
slot:
1x ISA, 2 x PCI, 1 x mini-PCI, one x16 PCI-E
& one x4 PCI-E.
-
GPIO
Interface:
Onboard programmable 8-bit Digital I/O interface.
-
WatchDog
Timer:
256-level generates system reset programmable watchdog timer.
-
Dimension:
244mm x 244mm.
|
|
BackToTop |
Specification
|
|
Form Factor |
microATX Motherboard
(244 x 244 mm) |
|
Processor |
Family: Intel®
Core™ 2
Quad / Core™
2
Duo / Celeron
Socket
type: LGA775
FSB:
800/1066/1333MHz |
|
Memory |
4
x DDR3-800/1066MHz
SDRAM up
to 8GB |
|
Chipset |
Intel®
Q45
& ICH10DO or G45 & ICH10(optional, w/o
RAID) |
|
Real
Time Clock
|
Chipset
integrated RTC with onboard lithium battery
|
|
Watchdog
Timer |
System
Reset
Time-out Counter ranges from 1sec (min) to 255sec
(min)
|
|
Power
Management |
ACPI
1.0 compliant, supports power saving mode with ATX PSU
|
|
VGA Interface |
Intel®
integrated extreme GMA 4500 technology |
|
Video
Memory |
Up
to 1024MB shared with system memory |
|
Serial ATA
Interface |
6
x Serial ATA II Interface with 300MB/s transfer rate
Support
RAID 0, 1, 5, 10 and Intel® Matrix Storage Technology
|
|
Audio
Interface |
Integrated
ICH10DO with Realtek ALC888 HD Audio.
|
|
LAN Interface |
2
x Intel® 82574L Gigabit Ethernet Controller |
|
GPIO
Interface |
Onboard
programmable
8-bit digital I/O interface
|
|
Expansion
slot |
1x
ISA, 2 x PCI, 1 x mini-PCI, one x16
PCI-E & one x4 PCI-E
|
|
Internal I/O
Port
|
3
x RS232, 1
x LPT, 1 x FDD, 1 x GPIO, 1 x IrDA, 8 x USB,
1
x SMBus, 1 x Front Audio connector, 1 x CDIN
|
|
External I/O
Port |
2
x RS232, 1 x RS232/422/485, 2 x LAN, 1 x VGA, 1 x PS/2,
4
x USB, 1 x SPDIF, 1 x Audio
|
|
Power Requirement |
Standard
24-pin ATX power supply ( 20-pin is compatible)
Standard 4-pin 12V power Input connector |
|
Dimension
|
244mm x 244 mm (L x
W)
|
|
Operation
Temperature |
0 ~
60oC (32 ~ 140oF)
|
|
|
Download
Datasheet @ PDF format
 |
|
BackToTop |
Ordering Guide
|
|
P4ELA
|
Support
Intel® Core™ 2 Quad with DDR3, onboard VGA, 2 x Gigabit LAN,
12
x USB2.0, Realtek ALC888 HD audio, 6 x COM & SATA, GPIO, ISA
|
|
OHS-1U775S
|
Low
Profile 1U Multi-Core CPU Cooler (LGA775)
|
|
MP-6421
|
Mini-PCI
Card support 1 x 44-pin IDE, 1 x CompactFlash & 2 x SATA
|
|
MP-323
|
Mini-PCI
module supports
3 x IEEE1394A
|
|
MP-6100
|
Mini-PCI
H.264 video capture card supports 4-ch Video & Audio inputs
with SDK
|
|
PCIE-SDVOD
|
PCIe
module supports
1 x DVI
|
|
PCIE-SDVOX
|
PCIe
module supports 18/24-bit, Dual channel LVDS interface
|
