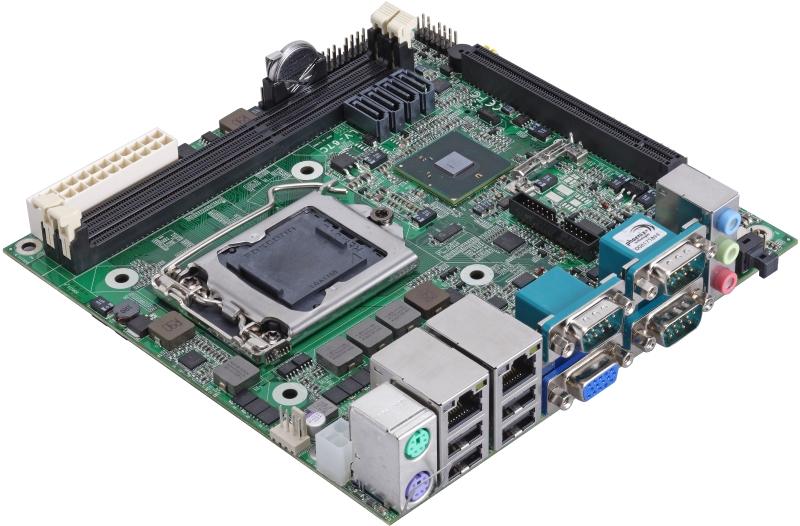

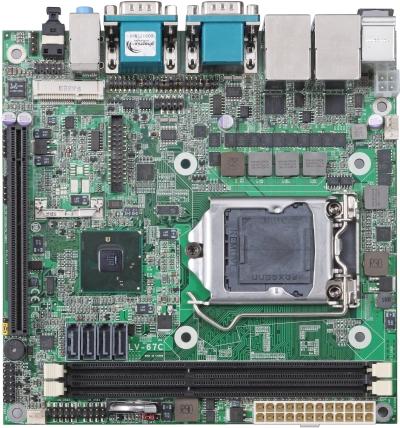

LV-67C
Intel® Core™ i7 / i5 / i3 / Pentium® Mini-ITX Motherboard

Support Intel® Core i7 / i5 / i3 / Pentium® with Intel® BD82Q57 PCH
8GB DDR3, 2 x Gbit LAN, 8 x USB 2.0, 4 x COM, HD Audio
8-bit digital I/O, 4 x SATAII with RAID, PCIe X16, MiniPCIe & Mini-PCI socket

view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

This platform is ideal for developing high-performance systems for industrial control and automation, retail, gaming, print imaging and digital signage.

BackToTop

  Key Feature
  • CPUIntel® Core™ i7/ i5/ i3/ Pentium desktop in the LGA1156 socket.

  • MemoryTwo DDR3 1066/1333 MT/s DIMM up to 8GB.

  • Chipset: Intel® BD82Q57 PCH.

  • Display InterfaceIntel® 32nm Core™ i5/i3 integrated HD Graphics Technology, VGA and DVI output interface.

  • LAN Interface2 x Intel® 82574L Giga LAN.

  • Serial ATA: Support four SATAII up to 300MB/s with RAID 0,1,5,10.

  • Audio: Intel® Q57 integrated with Realtek ALC888 High Definition Audio.

  • I/O ports: 3 x RS232 and 1 x RS232/422/485 Serial Ports, 8 x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports.

  • Extended interface: One x16 PCIe, 1 x Mini-PCIe & 1 x Mini-PCI socket.

  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.

  • WatchDog Timer: 256-level generates NMI or system reset programmable watchdog timer.

BackToTop

  Specification


Form Factor

Mini-ITX Motherboard

Processor

Intel® Core i7 / i5 / i3 / Pentium® Desktop processor

Package Type: FCLGA1156

Bus Speed: 2.5GT/s DMI

Memory

2 x 240-pin DDR3 1066/1333 MT/s DIMM up to 8GB

Chipset

Intel® BD82Q57 PCH (Platform Controller Hub)

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

ACPI 1.0 compliant, supports power saving mode

Serial ATA Interface

Intel® Q57 PCH built-in 4 x Serial ATA II interface up to 300MB/s

Support RAID 0, 1, 5, 10 and Intel® Rapid Storage Technology

VGA Interface

Intel® Core™ integrated HD Graphics Technology

Video Memory

Up to 1.7GB shared with system memory

Audio Interface

Intel® integrated Q57 with Realtek ALC888 HD Audio

LAN Interface

2 x Intel® 82574L Gigabit Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

One x16 PCIe, 1 x Mini-PCIe, 1 x Mini-PCI

Internal I/O Port

1 x RS232/422/485, 1 x GPIO, 1 x CDIN, 1 x SMBus,

1 x Audio, 1 x IrDA, 4 x USB2.0

External I/O Port

1 x PS/2 keyboard/mouse, 2 x RJ45, 1 x VGA, 4 x USB2.0,

1 x Audio, 3 x RS232

External Audio

Line-in, MIC-in, Front, Rear, Center/Subwoofer and optical SPDIF

Power Requirement

Standard 24-pin ATX power supply and P4 4-pin 12V.

(20-pin is compatible)

Board Dimension

170mm x 170 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LV-67C

2 x Intel Gbit LAN, 8 x USB2.0, x16 PCIe, Mini-PCIe, Mini-PCI,

4 x COM, HD Audio, 4 x SATA, 1 x IrDA, 1 x VGA, 1 x DVI
