LV-67B
 Intel® Core™ 2 Duo mobile Mini-ITXexpress Motherboard

Mini-ITXexpress Mainboard with Intel® GM45 provides platform for
Intel® Core™ 2 Duo with Socket P @ FSB 667/800/1066 MHz,
DDR3 up to 8GB, 2 Giga LAN, CRT, LVDS, HDTV, 1394, SATA,
HD Audi, 2 x COM, PCI-Express, Mini PCI and PCI Express mini card

view larger image



-
Overview
-
Feature
-
Specification
-

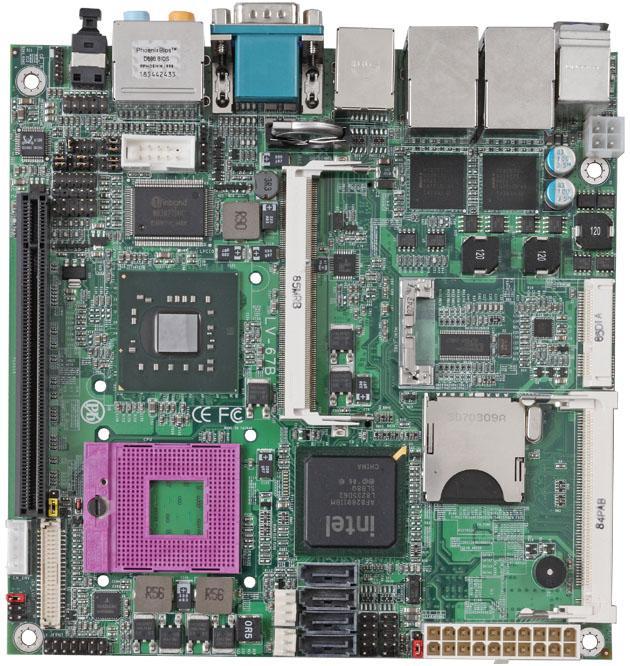

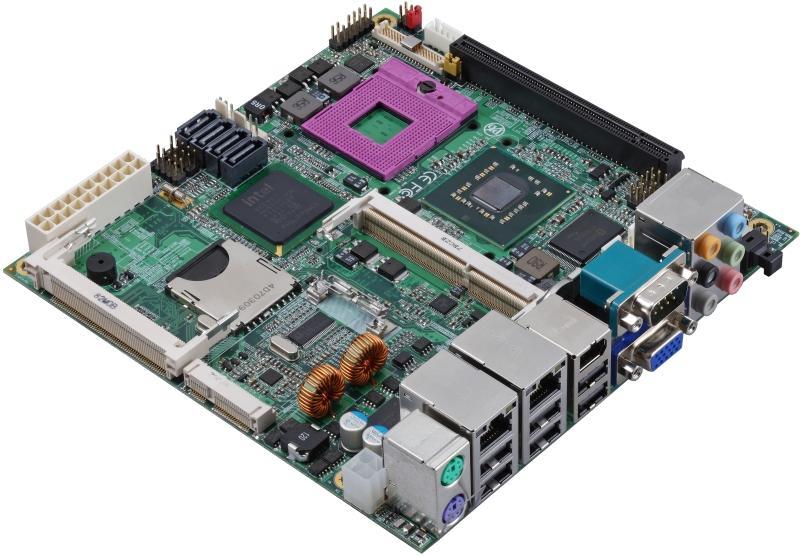

Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview



Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Mini-ITX  mainboard, introduced the  Mini-ITX LV-67B that mainboard incorporates an Intel Socket P pin-out compatible with Intel Core 2 Duo Mobile Penryn or Core 2 Extreme processors @ FSB 667/800/1066 MHz support for T8100, T8300, T9300, T9400, T9500, X9100, X9000 & Mobile Celeron 585,575, Validated with the Mobile GM45 Express chipset, providing excellent flexibility for developers of embedded applications by offering outstanding graphics, memory and I/O bandwidth, asset management capabilities, storage speed and reliability, such as interactive clients, gaming platforms and industrial automation equipment.

The LV-67B Mini-ITX mainboard integrated Mobile Intel Graphics Accelerator 4500MHD, Intel Clear Video Technology, and graphics core speeds up to 533MHz and enable high-definition video playback, it also supports for numerous display, includes VGA, LVDS, HDTV.

COMMELL's LV-67B Mini-ITX mainboard supports SO-DIMM memory slots for DDR3 SDRAM and up to 8GB, and comes with PS/2 Keyboard and Mouse, 1 x RS232C and 1 x RS232/422/485, Networking is provided by  two Intel 82573L Giga LAN, 10 x USB2.0 ports, IEEE1394, It offers Realtek ALC888 HD audio, 4 x SATA interface, Expansion with one Mini PCI, one PCIe x 16 and one PCI express Mini card slots.

BackToTop

  Key Feature
  • CPU: Intel® Core™ 2 Duo processor with Socket P @ 667/800/1066 MHz FSB

  • Memory: 2 x DDR3 800/1066 MHz, maximum up to 8GB.

  • Chipset: Intel® GM45 and ICH9M.

  • VGA Interface: built-in Intel® extreme GMA 4500MHD Technology.

  • LVDS interface: Onboard 24-bit Dual channel LVDS connector.

  • Serial ATA: 4 x Serial ATA interface with 300 MB/s transfer rate.

  • LAN Interface: 2 x Intel® 82573L Gigabit Ethernet .

  • Audio: Realtek ALC888 HD Audio.

  • IEEE 1394: 1 x IEEE1394 port.

  • GPIO interfaceOnboard 8-bit Digital I/O interface.

  • Extended interface: 1 x PCI-Express x16 , 1 x Mini-PCI and 1 x Mini card.

  • Rear I/O ports: PS/2 Keyboard/Mouse, VGA, 2 x LAN, 6 x USB 2.0, HD Audio, SPDIF, IEEE 1394, COM.



BackToTop

  Specification


Form Factor

Mini-ITXexpress Motherboard (170 x 170 mm)

CPU

Intel® Core 2 Duo with Socket P @ 667/800/1066 MHz FSB

Memory

2 x DDR3 800/1066 MHz, maximum up to 8GB

Chipset

Intel® GM45 & ICH9M

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset internal timer for 1sec/min ~ 255 sec/min

Power Management

ACPI 2.0 compliant, supports power saving mode

VGA Interface

Intel® GM45 integrated GMA 4500MHD Technology

Video Memory

Up to 1024 MB shared with system memory

    LVDS Interface     24-bit dual channel LVDS interface

Serial ATA Interface

4 x Serial ATA II Interface with 300 MB/s transfer rate.

Audio Interface

Realtek ALC888 HD Audio

LAN Interface

2 x Intel® 82573L Gigabit Ethernet

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extend Interface

PCI-Express X16, Min-PCI and PCI Express Mini card

External I/O Port

2 x RJ45 LAN ports, 1 x DB15 VGA port,1 x  PS/2 Keyboard / Mouse ports, 1 x IEEE 1394 ports, 6 x USB 2.0 ports, Audio, SPDIF,  1 x COM

    Internal I/O Port

    1 x RS232/422/485, 1 x SMBUS, 1 x IrDA , 4 x USB 2.0,

    1 x 8-bit GPIO, 1 x Audio, 1 x CDIN, LVDS and LCD inverter

    connector, 1 x HDTV

Power Requirement

Standard 20-pin ATX power supply or

9V ~ 24V full range DC input (8 ~ 30V is operative)

(It won't support PCIE graphic card if use DC input mode)

    Board Dimension     170mm x 170 mm (L x W)

Operation Temperature

 0 ~ 60ºC (32 ~ 140ºF)



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LV-67B

Intel® Core™ 2 Duo Mini-ITX Motherboard with onboard VGA,

LAN, SATA, USB 2.0 ports Audio, IEEE1394, RS232/422/485, PCI-Express X16, Min-PCI, PCI Express Mini card slots interface

    MPX-574D PCI Express Mini card support 1 x Giga LAN
    MPX-574D2 PCI Express Mini card support 2 x Giga LAN
    MPX-2503 Wireless LAN mini card support 802.11 b/g
    MPX-7767 Wireless LAN mini card support 802.11 b/g/n
    ADP-L2T 18-bit LVDS to TTL module
