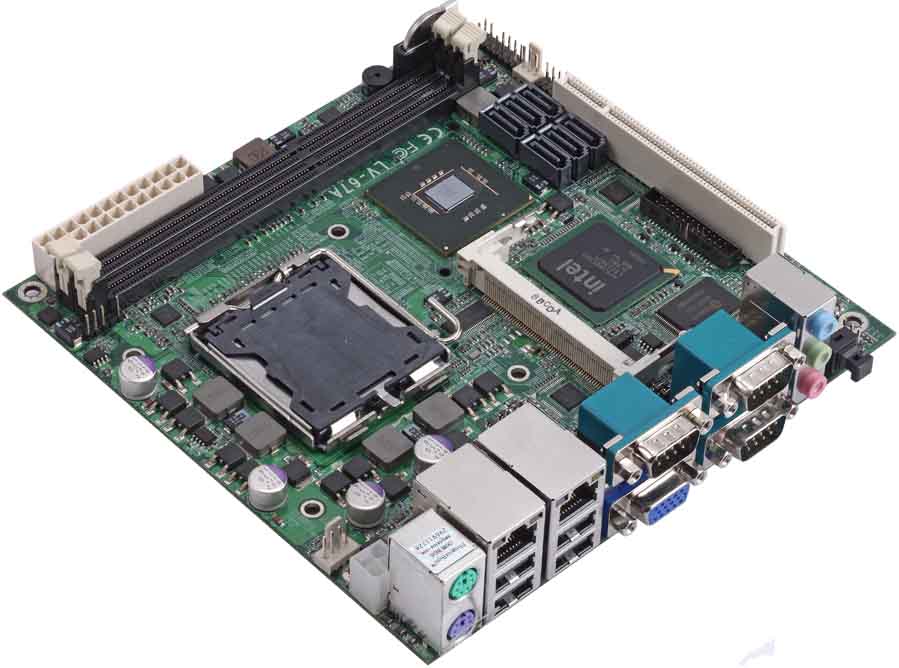

Intel® Core™ 2 Quad / Core™2 Duo Mini-ITX Motherboard
Intel® CoreTM 2 Quad / CoreTM 2 Duo processor with Intel® Q45 Express chipset
4GB DDR3, 2 x Gigabit Ethernet ports , 8 x USB 2.0, 4 x COM, HD Audio,
8-bit digital I/O, 6 x SATAII with RAID, PCI & Mini-PCI socket.
|
Overview
|
|
Taiwan
Commate Computer Inc.(COMMELL), the worldwide
leader of Industrial Mini-ITX mainboard, introduced
the Mini-ITX LV-67A that mainboard incorporates an
Intel LGA775 pin-out compatible with Intel
Core 2 Quad processor Q9400, Intel Core 2 Duo
processors E8400, E7400, E6400 and E4300, Intel
Dual-Core processors E5300 and E2160, and Intel Celeron
processor 440 @ 1333/1066/800 MHz Front Side Bus, The
LV-67A platform based on Q45 Express chipset, is ideal
for developing high-performance systems for industrial
control and automation, retail and hospitality, gaming,
print imaging, digital signage, digital surveillance and
network security applications.
The LV-67A mainboard has
a built-in Intel Graphics Accelerator 4500 to
deliver an excellent blend of graphics performance and
features, Delivers integrated dual-display support and
support for Microsoft DirectX 10 and OpenGL 2.0 enabling
support for the highest levels of Windows Vista
experience. The Graphic Memory Controller Hub
incorporates an updated backbone architecture that
optimizes available bandwidth with the 1333 MHz system
bus.
The mainboard also
supports Intel Matrix Storage Technology(MST), provides
quicker access to applications and data files with
RAID 0 and 10, and greater data protection against a
hard disk drive failure with RAID 1,5, and 10.
|
|
BackToTop |
Key Feature
|
-
CPU: Intel
Core 2 Quad/Core 2 Duo/Celeron processors @ FSB
800/1066/1333 MHz by the LGA775 socket pin-out.
-
Memory: 2
x DDR3 800/1066 MHz DIMM up to 4GB.
-
Chipset:
Intel Q45 & ICH10DO.
-
VGA
Interface: Intel
integrated extreme GMA 4500 technology.Optional
Secondary VGA Connector
(LV-67AT)
-
LVDS:
Optional 18/24-bit dual channel LVDS
(LV-67AX)
-
DVI:
Optional DVI interface
(LV-67AD, LV-67AD2)
-
LAN
Interface: 2
x Intel® 82574L Gigabit Ethernet Controller.
-
Serial ATA:
Support 6 x SATAII interface up to 300MB/s
transfer rate.
Support RAID 0, 1, 5, 10 and Intel Matrix Storage Technology.
-
Audio: Integrated
ICH10DO with Realtek ALC888 HD Audio.
-
Internal I/O
Port: 6 x SATA, 1
x RS232, 1 x Slim FDD, 1 x GPIO, 1 x CDIN, 1 x SMBUS,
1
x Audio, 1 x IrDA, 4 x USB2.0,
1 x LVDS
(Optional), 1 x
LCD inverter connector
(Optional),
1 x VGA
(Optional),
1 or 2 x DVI
(Optional)
-
External I/O
ports:
1 x PS/2, 2 x LAN,
4 x USB 2.0, 3 x COM,
1 x VGA, 1 x SPDIF
-
Extended
interface: 1 x
PCI slot & 1 x Mini-PCI socket
-
GPIO
interface: Onboard programmable 8-bit Digital
I/O interface.
-
WatchDog
Timer: 256-level generates system reset
programmable watchdog timer.
|
|
BackToTop |
Specification
|
|
Form Factor |
Mini-ITX
Motherboard |
|
Processor |
Intel Core
2 Quad /
Core
2
Duo
/ Celeron Desktop
Package
Type: LGA775
Front
Side Bus: 800/1066/1333 MHz |
|
Memory |
2
x 240-pin DDR3 800/1066MHz SDRAM up to 4GB
Unbufferred,
none-ECC memory supported only |
|
Chipset |
Intel®
Q45 Express Chipset & ICH10DO |
|
Real
Time Clock
|
Chipset
integrated RTC with onboard lithium battery
|
|
Watchdog
Timer |
Generates
a system reset with internal timer for 1min/s ~ 255min/s
|
|
Power
Management |
ACPI
2.0 compliant, supports power saving mode
|
|
Serial ATA
Interface |
Intel
ICH10DO built-in 6 x Serial ATA II interface up to
300MB/s
Support
RAID 0, 1, 5, 10 and Intel Matrix Storage Technology
|
|
VGA
Interface |
Onboard
Intel integrated extreme GMA4500 Technology
Optional
Secondary VGA connector (LV-67AT) |
|
Video
Memory |
Up to
1024MB shared with system memory |
|
LVDS
Interface |
Optional
18/24-bit dual channel LVDS connector (LV-67AX) |
|
DVI
Interface |
Optional
DVI interface (LV-67AD, LV-67AD2)
|
|
Audio
Interface |
Intel integrated ICH10DO with Realtek ALC888 HD Audio
|
|
LAN
Interface |
2
x Intel 82574L Gigabit Ethernet Controller |
|
GPIO
Interface |
Onboard
programmable
8-bit digital I/O interface
|
|
Extended
Interface |
1
x PCI slot, 1
x Mini PCI socket supports Mini PCI Type III A
|
|
Internal I/O
Port
|
6 x SATA, 1
x RS232, 1 x Slim FDD, 1 x GPIO, 1 x CDIN, 1 x SMBUS,
1
x Audio, 1 x IrDA, 4 x USB2.0,
1 x LVDS
(Optional), 1 x
LCD inverter connector
(Optional),
1 x VGA
(Optional),
1 or 2 x DVI
(Optional)
|
|
External I/O
Port |
2 x RS232, 1 x RS232/422/485, 2 x LAN, 1
x VGA, 1 x PS/2
4 x USB2.0, 1 x SPDIF, 1 x Audio
|
|
Power Requirement |
Standard
24-pin ATX power supply and P4 4-pin 12V.
(20-pin is compatible) |
|
Board Dimension
|
170mm x 170 mm (L x
W)
|
|
Temperature |
Operating
within 0 ~
60°C
Storage
within -20 ~ 85°C
|
|
|
Download
Datasheet @ PDF format
 |
|
BackToTop |
Ordering Guide
|
|
LV-67AD
|
2
x Intel Gigabit LAN, 8 x USB2.0, Mini PCI, PCI, 4 x COM, 1 x FDD,
Audio,
6 x SATA, 1 x IrDA, 1 x VGA, 1 x DVI
|
|
LV-67AD2
|
2
x Intel Gigabit LAN, 8 x USB2.0, Mini PCI, PCI,
4
x COM, 1 x FDD, Audio,
6 x SATA, 1 x IrDA, 1 x VGA, 2 x DVI
|
|
LV-67AX
|
2
x Intel Gigabit LAN, 8 x USB2.0, Mini PCI, PCI, 4 x COM, 1 x FDD,
Audio,
6 x SATA, 1 x IrDA, 1 x VGA, 1 x 18/24-bit
LVDS
|
|
LV-67AT
|
2
x Intel Gigabit LAN, 8 x USB2.0, Mini PCI, PCI, 4 x COM, 1 x FDD,
Audio,
6 x SATA, 1 x IrDA, 2 x VGA
|
|
OHS-1U775S
|
Low
Profile 1U Multi-Core CPU Cooler (LGA775)
|
|
MP-6421
|
Mini
PCI module supports 1 x 44-pin Ultra DMA 33 IDE interface for 2
ATAPI
devices, 1 x Compact Flash Type II, and 2 x SATA
|
