LV-669

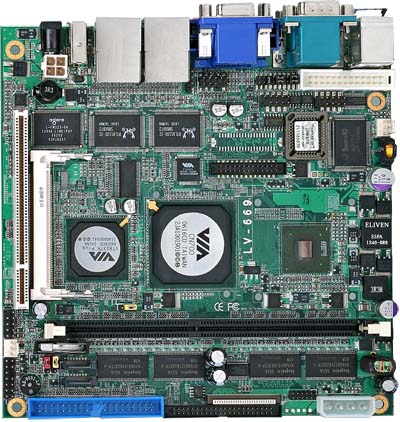

   VIA C7 with CN700 Mini-ITX Motherboard

Onboard VIA C7 1.5 GHz processor with VIA CN700 & VT8237+,
Optional onboard 256MB and one DIMM support up to 1 GB,
Onboard VGA and Optional LVDS or DVI interface, 2 x Giga LAN
2 x SATA, 4 x serial ports, IEEE 1394, PCI and Mini-PCI ,
Audio, GPIO, CompactFlash socket, 8 ~ 24 V full range DC input

view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

COMMELL, the worldwide leader of Industrial Mini-ITX motherboards, introduced the Mini-ITX platform LV-669 based on VIA CN700 and VT8237R+ Chipset with onboard VIA C7 1.5 GHz processor, Optional onboard 256 MB DDR SDRAM and one DDR DIMM up to 1.0 GB, Onboard VGA and optional LVDS or DVI interface, Especially in full range 8 ~ 24 V DC input

The LV-669 comes with floppy, PS/2 Keyboard and Mouse, DMA133 EIDE, 1 x RS232 & 3 x RS232/422/485, 2 x SATA  with 150MB/s transfer rate, Networking is provided by Realtek Gigabit Ethernet. 4 x USB2.0 ports for 40X faster data transfer rate and backward compatible to support USB 1.1 devices, 1 x IEEE 1394 and GPIO interface. Additionally, LV-669 is also equipped with Mini-PCI Interface for easily using wireless card or COMMELL Mini-PCI add-on cards

The COMMELL LV-669 is designed to meet the needs of applications that require extraordinary computing performance and reliability , which also well supports with the Windows 2000/XP, Linux operation systems.



BackToTop

  Key Feature
  • CPU: Onboard VIA C7 1.5 GHz processor.

  • Memory: 1 x 184-pin DDR up to 1 GB and optional onboard 256 MB SDRAM

  • Chipset: VIA CN700 & VT8237R+

  • VGA Interface: VIA CN700 integrated Unichrome Pro 3D/2D Graphics controller.

  • LVDS interface: Optional Onboard 18/24-bit Dual channel LVDS connector.

  • DVI interface: Optional onboard DVI interface.

  • Enhanced IDE: Two DMA133 IDE interface supports up to 4 ATAPI Devices.

  • Serial ATA: 2 x Serial ATA interface with 150 MB/s transfer rate.

  • LAN Interface: 2 x Realtek RTL8110S-32 Gigabit Ethernet .

  • Audio: Realtek ALC655 5.1 channel AC97 Codec.

  • Solid State Disk: IDE1 supports 44-pin DiskOnModule with +5V power supply. CompactFlash Type-II socket on the solder side .

  • IEEE 1394: 1 x IEEE1394 port.

  • GPIO interfaceOnboard 8-bit Digital I/O interface.

  • Extended interface: 1 x Mini-PCI socket and 1 x PCI.

  • Rear I/O ports: PS/2 Keyboard/Mouse , VGA , 2 x LAN ,4 x USB2.0 , Audio , 2 x COM , IEEE 1394 , DC input.



BackToTop

  Specification


Form Factor

Mini-ITX Motherboard (170 x 170 mm)

CPU

Onboard VIA C7 1.5 GHz processor.

Memory

1 x 184-pin DDR up to 1 GB and optional onboard 256 MB SDRAM

Chipset

VIA CN700 & VT8237R+

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset  internal timer for 1min ~ 255 min

Power Management

ACPI 1.0 compliant, supports power saving mode

PCI Enhanced IDE

2 x DMA133 IDE channel up to 4 ATAPI devices.
(1 x 40-pin and 1 x 44-pin)

VGA Interface

 VIA CN700 integrated Unichrome Pro 3D/2D Graphics controller.

Serial ATA Interface

2 x Serial ATA Interface  with 150 MB/s transfer rate.

Audio Interface

Realtek ALC655  5.1 channel Audio

LAN Interface

 2 x Realtek RTL8110S-32 Gigabit Ethernet .

Solid State Disk

IDE1 supports 44-pin DiskOnModule +5V power supply

CompactFlash Type-II on the rear .

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extend Interface

1 x PCI slot , 1 x Min-PCI socket

External I/O Port

2 x RJ45 LAN port, 1x DB15 VGA port, 1 x  PS/2 Keyboard / Mouse ports,  2 x COM, 1 x IEEE 1394 ports, 4 x USB 2.0 ports, Audio ,  DC input connector

   Internal I/O Port

    1 x RS232 & 1 x RS232/422/485, 1 x slim FDD, 1 x IrDA ,

    2 x USB 2.0, 1 x 8-bit GPIO, 1 x Audio, 1 x LPT

Power Requirement

8 V ~ 24 V full range DC input , onboard 4-pin 12V connector

    Board Dimension     170mm x 170 mm (L x W)

Operation Temperature

 0 ~ 60oC (32 ~ 140oF)



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LV-669D-P

VIA C7 1.5 GHz with onboard VGA, Audio, Giga LAN, USB 2.0, CompactFlash, SATA, IEEE 1394,  DVI

   LV-669E5D-P Same as LV-669D-P but change CPU to Eden ULV 500 MHz

   LV-669D-256

Same as LV-669D-P and with onboard 256 MB DDR SDRAM

   LV-669X-P VIA C7 1.5 GHz with onboard VGA, Audio, Giga LAN, USB 2.0, CompactFlash, SATA, IEEE 1394, LVDS
   LV-669E5X-P Same as LV-669X-P but change CPU to Eden ULV 500 MHz
   LV-669X-256 Same as LV-669X-P and with onboard 256 MB DDR SDRAM
