LS-579

5.25" Embedded SBC with Intel® 6^th /  7^thGen Core™ i7 / i5 / i3 S-series Processor

and Xeon® E3-1200 v5 / v6 Processor

Support Intel® 6^th & 7^thGen Core^™ i7 / i5 / i3 S-seriesand Xeon® E3-1200 v5 / v6 Processor with

Intel® C236 chipset, 2 x DDR4 SO-DIMM 1866/2133 up to 32 GB, integrated VGA, HDMI, LVDS,

DisplayPort, 4 x Giga LAN (Support PSE), 4 x USB 2.0, 6 x USB 3.0, 2 x RS232/422/485, 4 x RS232,

1 x PS/2, HD Audio, 4 x SATA3, GPIO, SMBUS, 1 x LPC, 1 x SIM socket, 2 x Mini-PCIe socket

(Support mSATA), 2 x M.2 (Key M), 1 x M.2 (Key E).


view larger image
	-	Overview
	-	Feature
	-	Specification

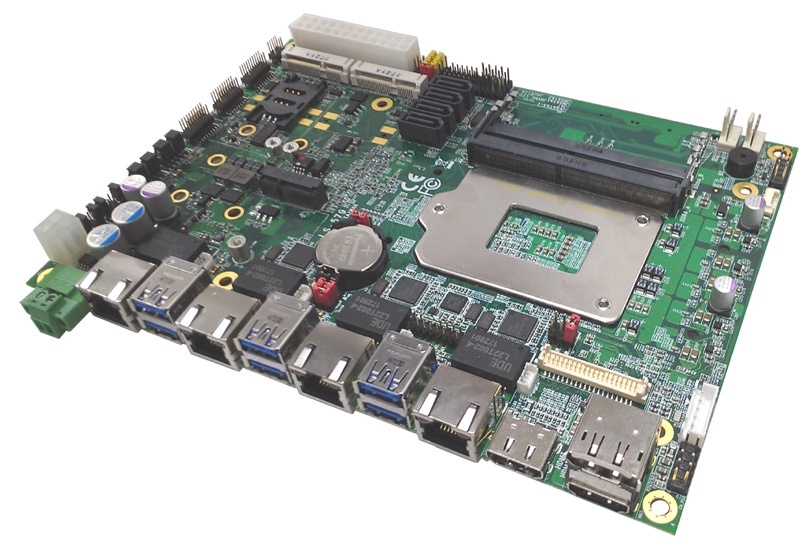

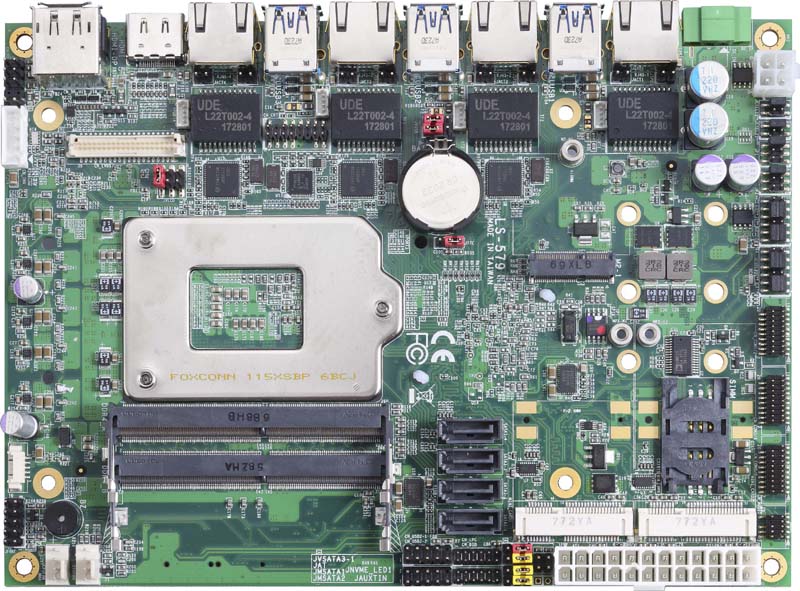

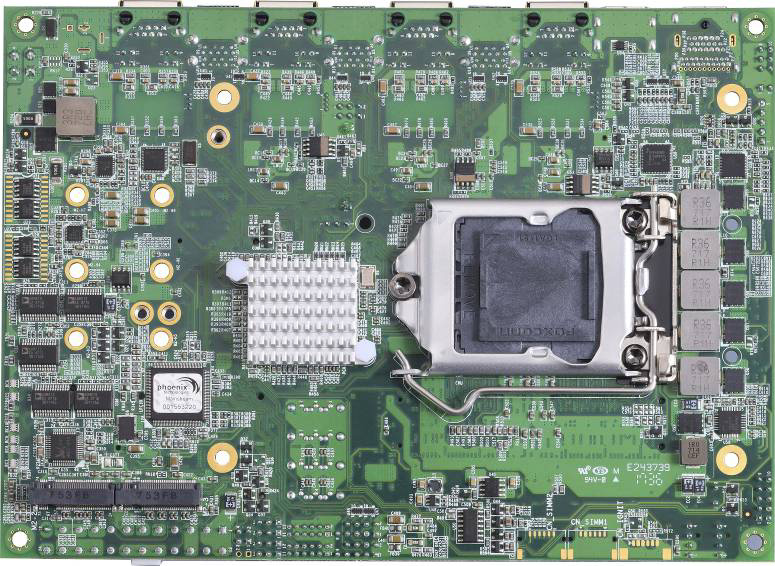

	-	Product Image TOP BOTTOM
	-	Ordering Guide
	-	Datasheet (PDF format)
	-	Technical Document

  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, unveiled LS-579 5.25" embedded system board based on Intel® Skylake / Kaby Lake Intel® 6th / 7th Gen Core™ i7 / i5 / i3 S-series Processor and E3-1200 v5 processor family.

Integrated Intel® HD Graphics Technology with integrated memory. The COMMELL LS-579 platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defense, transportation and industrial automation application. Intel® mobile platform to support DDR4 memory (Two DDR4 SO-DIMM 1866/2133 MHz up to 32GB).

The platform is based on Intel® HD Graphics, Technology that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. Displays can be connected via one VGA, one LVDS, one HDMI and one DP port, up to three displays can be controlled simultaneously support to provide its advanced solutions for imaging, machine vision and digital signage applications. LS-579 offers lots of features including high-speed data transfer interfaces such as 6 x USB3.0 and 4 x SATAIII, equipped with dual Gigabit Ethernet and comes with PS/2 port, 4 x RS232 and 2 x RS232/422/485, 4 x USB2.0, Intel® High Definition Audio, and 2 x MiniPCIe socket (support mSATA), 1 x SIM slot, 2 x M.2 (Key M), 1 x M.2 (Key E).

BackToTop

  Key Feature

CPU: Intel® 6th / 7th Gen Core™ i7 / i5 / i3 S-series Processor and E3-1200 v5 / v6 processor, FCLGA1151 package. (TDP up to 45W)
Memory: 2 x DDR4 1866/2133 SO-DIMM up to 32GB.
Integrated Graphics: Intel® integrated HD Graphics.
Display port interface: Onboard Display port connector.
LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/ +12V supply
VGA interface: 16-pin connector.
HDMI interface: Onboard HDMI connector.
LAN Interface: 3 x Intel® I210-AT Gigabit LAN, 1 x Intel® I219-LM Gigabit PHY LAN.
Serial ATA: Support 4 x SATA3.
Audio: Realtek ALC262 HD Audio.
Internal I/O: 4 x SATA3, 2 x RS232/422/485, 4 x RS232, 4 x USB2.0, 1 x LPC, 1 x LVDS, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBUS, 1 x VGA.
Rear I/O: 1 x DisplayPort(optional), 2 x HDMI, 6 x USB3.0, 4 x LAN, .
Extended interface: 2 x PCIe Mini card (Support mSATA), 1 x SIM socket, 2 x M.2 (Key M) for PCIe NVMe 2242/2260/2280mm, 1 x M.2 (Key E) for Wi-Fi and Bluetooth 2230mm.
GPIO interface: Onboard programmable 8-bit Digital I/O interface.
Power requirement: Standard 24-pin ATX power supply (20-pin is compatible) or 4-pin 9~35V.

BackToTop

  Specification

Form Factor	5.25" SBC
Processor	Intel® 6th / 7th Gen Core™ i7 / i5 / i3 S-series Processor and E3-1200 v5 / v6 processor, FCLGA1151 package. (TDP up to 45W)
Memory	2 x 260-pin DDR4 1866/2133 MHz SO-DIMM up to 32GB. (Unbufferred, none-ECC memory supported only)
Integrated Graphics	Intel® integrated HD Graphics
Real Time Clock	Chipset integrated RTC with onboard lithium battery
Watchdog Timer	Generates a system reset with internal timer for 1min/s ~ 255min/s
Serial ATA Interface	4 x Serial ATA3 interface up to 600MB/s Support RAID 0, 1, 5, 10 and Intel Rapid Storage Technology.
LVDS Interface	Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply
VGA interface	16-pin connector
DisplayPort Interface	Onboard DisplayPort connector
HDMI Interface	Onboard HDMI connector
Audio Interface	Realtek ALC262 HD Audio
LAN Interface	3 x Intel® I210-AT Gigabit Ethernet Controller, 1 x Intel® I219-LM Gigabit PHY LAN
GPIO Interface	Onboard programmable 8-bit digital I/O interface
Extended Interface	2 x PCIe Mini card (Support mSATA), 1 x SIM socket, 2 x M.2 (Key M) for PCIe NVMe 2242/2260/2280mm, 1 x M.2 (Key E) for Wi-Fi and Bluetooth 2230m
Internal I/O Port	4 x SATA3, 2 x RS232/422/485, 4 x RS232, 4 x USB2.0, 1 x LPC, 1 x LVDS, 1 x LCD inverter, 1 x GPIO, 1 x Audio (MIC-in & Line-out), 1 x PS/2(Keyboard & Mouse), 1 x SMBUS, 1 x VGA
Rear I/O Port	1 x DisplayPort(optional), 2 x HDMI, 6 x USB3.0, 4 x LAN
Power Requirement	Standard 24-pin ATX power supply (20-pin is compatible) or 4-pin 9~35V DC input
Board Dimension	203 mm x 146 mm (L x W)
Temperature	Operating within 0 ~ 60°C Storage within -20 ~ 80°C
Relative Humidity	10%~90%, non-condensing

Download Datasheet @ PDF format

BackToTop

Ordering Guide
LS-579	Skylake & Kaby Lake i7 / i5 / i3 S-series and Xeon® E3 v5 / v6 Processor, support HDMI, LVDS, VGA, DP
LS-579T	Skylake & Kaby Lake i7 / i5 / i3 S-series and Xeon® E3 v5 / v6 Processor, support HDMI, LVDS, VGA, Header for 2^ndVGA or 2^nd LVDS (Note1)
ADP-PSE4	Compliant IEEE802.3 at support LTPoE++ 90W, with four independent PSE channels
ADP-3355	DP to VGA
ADP-3460	DP to LVDS (For 2nd LVDS)
DC-DC5	Power Converter Module with Heat spreader, Terminal block, DC 19~35V input, DC 54V/2A output
DC-PD Series	PoE+ PD Module
Note1: There are two modules (ADP-3355, ADP-3460), and you can choose one to support 2^ndVGA or 2^ndLVDS.
