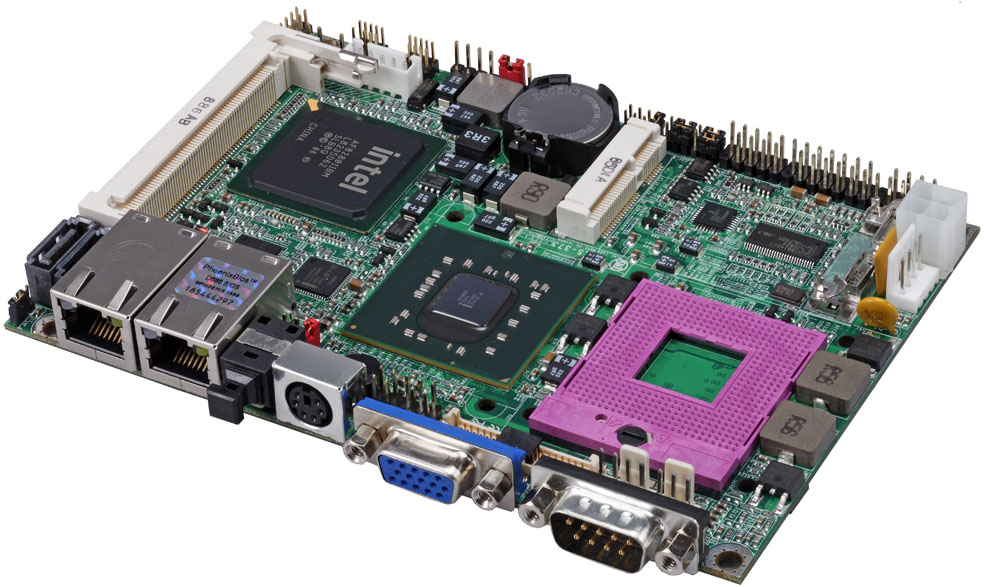

LS-373
 Intel® Core™ 2 Duo mobile 3.5" Miniboard

3.5" Mainboard with Intel® GM45 provides platform for Intel® Core™ 2 Duo
with Socket P @ FSB 667/800/1066 MHz, DDR3 up to 4GB, 2 Giga LAN, CRT,
LVDS, HDTV, SATA, HD Audi, 2 x COM, Mini PCI and PCI Express mini card

view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview



Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial SBC, introduced the 3.5" SBC - LS-373 that mainboard incorporates an Intel Socket P pin-out compatible with Intel Core 2 Duo Mobile Penryn @ FSB 667/800/1066 MHz, Validated with the Mobile GM45 Express chipset, providing excellent flexibility for developers of embedded applications by offering outstanding graphics, memory and I/O bandwidth, asset management capabilities, storage speed and reliability, such as interactive clients, gaming platforms and industrial automation equipment.

The LS-373 3.5" miniboard integrated Mobile Intel Graphics Accelerator 4500MHD, Intel Clear Video Technology, and graphics core speeds up to 533MHz and enable high-definition video playback, it also supports for numerous display, includes VGA, LVDS, HDTV.

COMMELL LS-373 3.5" miniboard supports SO-DIMM memory slots for DDR3 SDRAM and up to 4GB, and comes with PS/2 Keyboard and Mouse, 1 x RS232C & 1 x RS232/422/485,  Networking is provided by  two Intel 82574L Giga LAN, 4 x USB2.0 ports, It offers Realtek ALC888 HD audio, 2 x SATA interface, Expansion with one Mini PCI and one PCI express Mini card slots.
