LP-180
Pico-ITX with onboard AMD Dual-core G-T56N

    Pico-ITX based on AMD G-T56N 1.65GHz APU, & AMD A55E Controller Hub
    4GB DDR3 SDRAM, VGA, 18-bit single channel LVDS or DVI Interface, Giga LAN
    2 x COM , HD Audio, 4 x USB, SATAII , Mini-PCIe socket, DC 5V input

view larger image



-
Overview
-
Feature
-
Specification
-

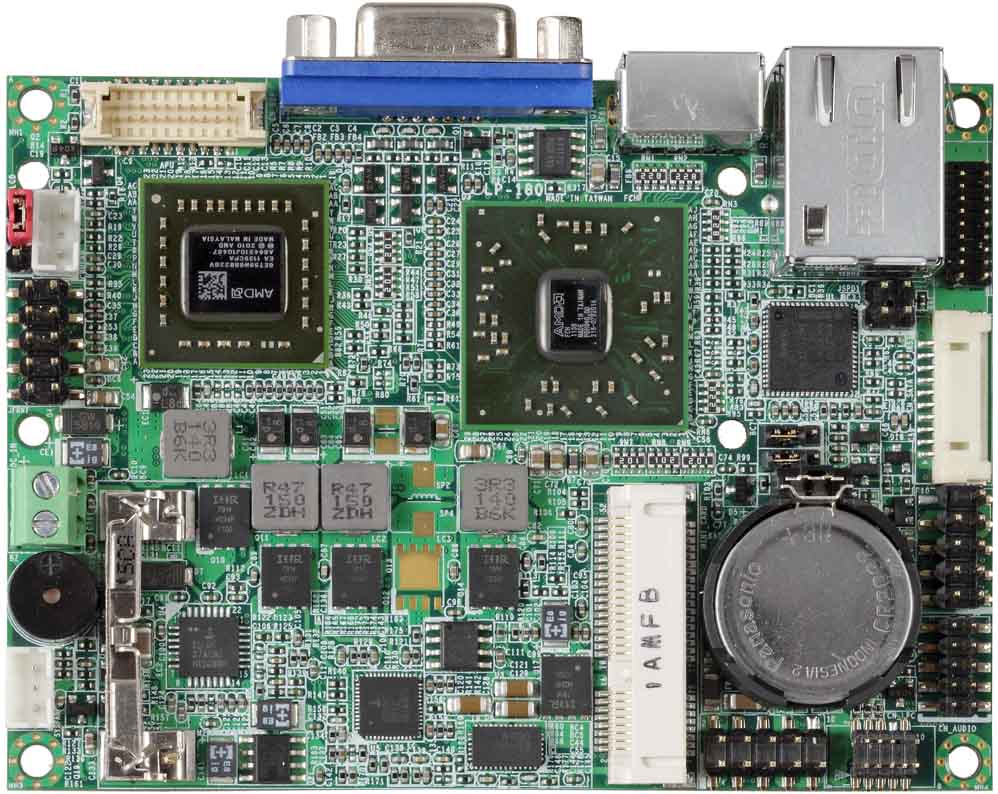

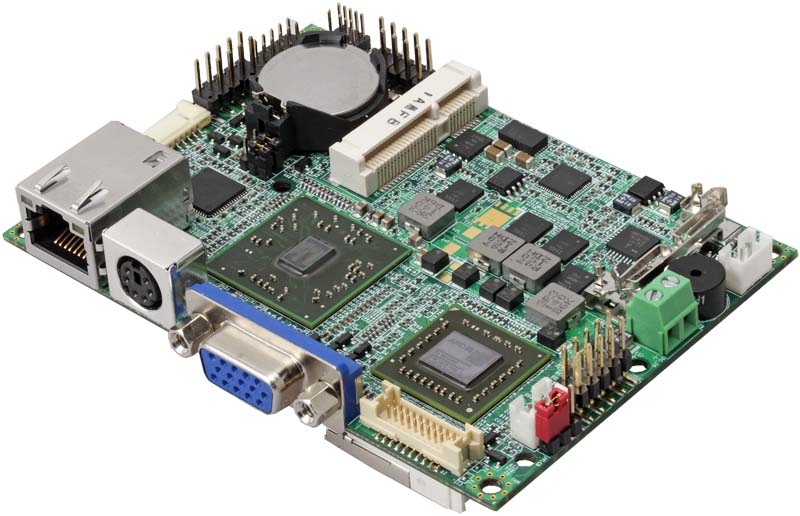

Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Single Board Computers, unveils the  new industrial-grade Pico-ITX (measuring just 10cm x 7.2cm )motherboard LP-180, combined the AMD dual-core 1.65GHz 18W TDP T56N Accelerated Processing Unit(APU) and the AMD A55E Fusion Controller Hub, which is especially aimed at users who require solutions with high-performance graphics at low energy-consumption levels, Designed to enable x86 to be built into embedded systems where it was previously impractical for space reasons. It is especially suitable for applications that must be contained in a limited space control systems, such as Digital Signage, Thin Client, Information Kiosk, Point-of-Sale, and Casino Gaming and Industrial control systems.

COMMELL LP-180 miniboard based on T56N APU that integrated a low-power dual-core CPU and a discrete-level GPU(AMD Radeon HD 6320), providing one DDR3-1333 SO-DIMM SDRAM up to 4GB and an array of video interface including VGA, DVI or 18-bit single channel LVDS. The T56N APU supports single or dual-independent high resolution displays and exceptional multi-media capability with hardware decode support for H.264, VC-1, MPEG2, WMV, DivX and Adobe Flash.

BackToTop

  Key Feature
  • CPU:  Onboard AMD Dual-core T56N 1.65 GHz

  • Memory1 x 204-pin DDR3 1066/1333 SO-DIMM SDRAM up to 4.0 GB

  • Chipset: AMD A55E FCH

  • Display Interface: Integrated AMD Radeon HD 6300 series graphic

  • LVDS interface: 18-bit single channel LVDS interface

  • DVI interface: onboard 20-pin DVI interface

  • LAN Interface1 x Intel® 82583V Giga LAN

  • Serial ATA: Support 1 x SATAII up to 300MB/s

  • Audio: Realtek ALC888 High Definition Audio.

  • I/O ports: 2 x RS232, 4 x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports,

  • Extended interface: Mini-PCIe socket

  • Power requirement : Single DC 5V input

BackToTop

  Specification


Form Factor

Pico-ITX motherboard

Processor

Onboard AMD Dual-core T56N 1.65 GHz

Memory

1 x 204-pin DDR3 1066/1333 SO-DIMM up to 4.0 GB

Chipset

AMD A55E FCH

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Serial ATA Interface

1 x SATAII interface. ( Note: Supply 5V power from the board only )

VGA Interface

Integrated AMD Radeon HD 6300 series graphic

LVDS Interface

18-bit single channel LVDS interface. ( LP-180X only )

 DVI Interface  onboard 20-pin DVI interface. ( LP-180D only )

Audio Interface

Realtek ALC888 HD Audio

LAN Interface

1 x Intel® 82583V Gigabit Ethernet Controller

Extended Interface

Mini-PCIe socket

Internal I/O Port

2 x RS232, 4 x USB2.0, 1 x LPC, 1 x DC_out

1 x LVDS, 1 x LED backlight with 3.3V / 5V optional ( LP-180X )

1 x DVI ( LP-180D )

External I/O Port

1 x PS/2 keyboard/mouse, 1 x RJ45 LAN, 1 x VGA

Power Requirement

Single DC 5V input

Board Dimension

100mm x 72 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LP-180D

Pico-ITX with onboard AMD Dual-core T56N 1.65 GHz with VGA, Giga LAN, COM, USB, SATA, DC 5V input, DVI interface

LP-180X

Pico-ITX with onboard AMD Dual-core T56N 1.65 GHz with VGA, Giga LAN, COM, USB, SATA, DC 5V input, LVDS interface

SPD-030-5

5V/30W AC-DC Adapter

BackToTop

[Single Board Computer Index]
