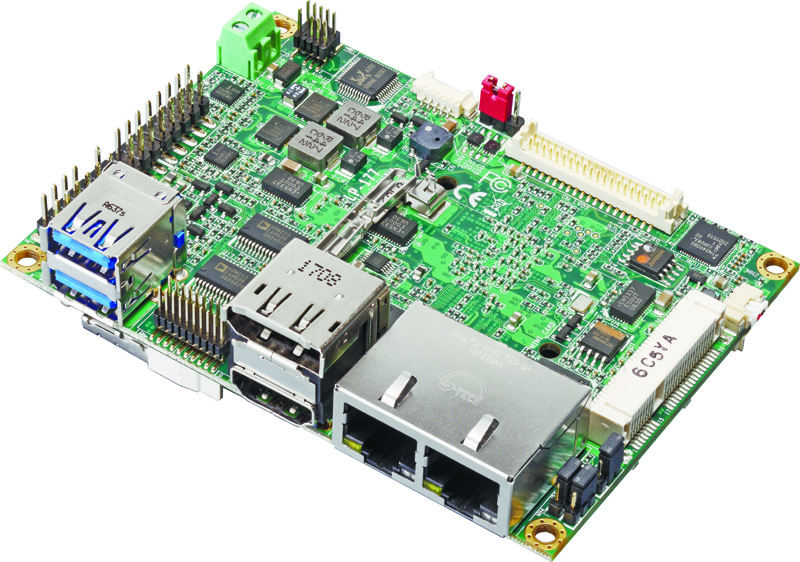

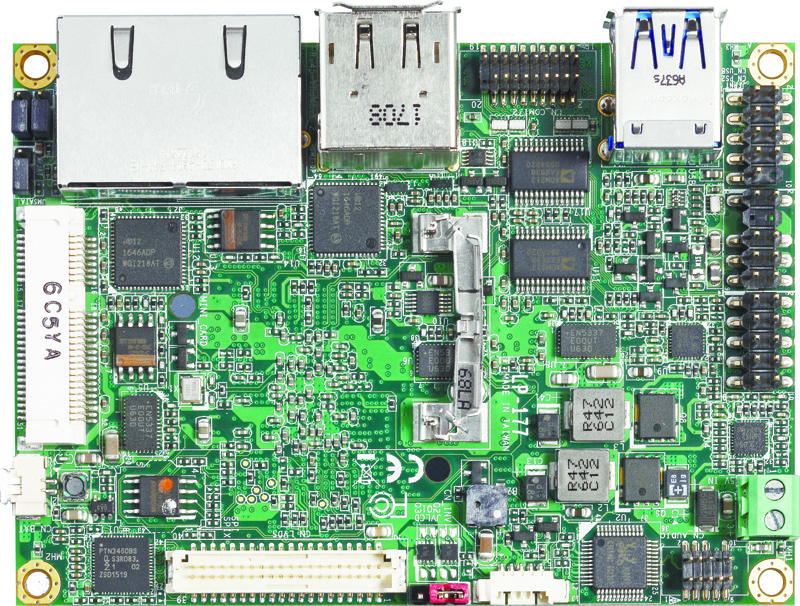

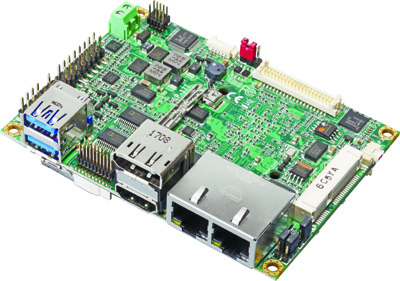

Pico-ITX motherboard with Intel® Apollo Series Processor N3350/N4200/x7-E3950
Intel® Apollo Lake Series Processor.
Onboard HDMI, DisplayPort, LVDS, Gigabit LAN, USB3.0 & 2.0, HD Audio, LPC,
PCIE Mini card, mSATA
|
Overview |
|
Taiwan
Commate Computer Inc.(COMMELL), the worldwide leader
of Industrial Single Board Computers, launched a
Pico-ITX
form factor LP-177 consists of the Intel®
Apollo Lake Series, combined with the
Intel® Express chipset, Integrated Intel® integrated HD Graphics
Technology with integrated memory.
The COMMELL LP-177 platform
provides excellent CPU, graphics, media performance,
flexibility, and enhanced security, is ideally suited to
applications requiring multi-tasking capabilities, such
as gaming, surveillance, medical, defense,
transportation and industrial automation application.
The
LP-177 Pico-ITX
Motherboard is
designed for Intel®
Apollo Lake
series
processors
supporting
one DDR3L SO-DIMM up to
8GB
and running 1866 MHz No ECC function. The platform is based on Intel®
integrated HD Graphics Technology that provides high-end media and
graphics capabilities for devices that display videos,
2D/3D graphics and interactive content. In addition,
LP-177
integrated optional DisplayPort, HDMI, LVDS for Triple display
supports
to provide its advanced solutions for imaging, machine
vision and digital signage applications.
LP-177 offers lots of
features including high-speed data transfer interfaces
such as
2 x USB
3.0, equipped with
two Gigabit Ethernet, and
it comes with PS/2 Keyboard and Mouse port,
2 x RS232,
2 x USB2.0, Intel® High Definition Audio, 1 x PCIE
Mini card socket or mSATA.
|
|
BackToTop |
Key Feature |
-
CPU: Intel® Apollo Lake series Processor N3350 / N4200
/ x7-E3950, FCBGA1296 package. -
Memory:
1 x DDR3L
(support 1.35V) 1866
SO-DIMM up to 8GB -
Integrated Graphics: Intel® integrated HD Graphics -
LVDS
interface: Onboard 18/24-bit single/dual channel LVDS connector
with +3.3V / +5V supply -
Serial
ATA: Support 1
x
SATA3 with
600MB/s
(6Gb/s) transfer rate -
Audio: Realtek ALC262 HD Audio -
LAN
Interface: 2 x Intel®
I210-AT Gigabit LAN -
Extended
interface: 1
x PCIE mini card socket
(Support mSATA). -
Internal I/O:
1
x SATA3, 1
x LVDS,
1 x LCD inverter, 1 x PS/2,
2 x RS232,
1 x LPC,
1 x SMBUS, 1 x Audio,
2
x USB2.0,
1 x VGA(Optional) -
Rear I/O: 2 x
LAN, 2 x USB 3.0,
1 x HDMI,
1 x DisplayPort(Optional) -
Power: DC input 5V ± 5% |
BackToTop |
Specification |
|
Form Factor |
Pico-ITX
Motherboard |
|
CPU |
Intel® Pentium® CoreTM
processor
N4200,
2.50
GHz ( LP-177N4 series )
Intel® Celeron® CoreTM processor
N3350,
2.40
GHz ( LP-177N3 series
) Intel®
Atom®
x7-E3950 processor,
2.00
GHz ( LP-177E series
) |
|
Memory |
1
x 204-pin DDR3L
(support 1.35V)
1866 SO-DIMM
up to
8GB |
|
Real
Time Clock
|
Chipset
integrated RTC with onboard lithium battery |
|
Watchdog
Timer |
Generates
a system reset
internal
timer for 1min/s ~ 255min/s |
|
Integrated Graphics |
Intel®
integrated HD Graphics |
|
LVDS
Interface
|
Onboard 18/24-bit single/dual channel LVDS connector with +3.3V
/
+5V
supply |
|
Serial
ATA Interface
|
1
x SATA3 with
600MB/s
(6Gb/s) transfer rate |
|
Audio
Interface |
Realtek ALC262 HD Audio |
|
LAN Interface |
2 x Intel® I210-AT Gigabit LAN |
|
Expansion
Interface |
1 x PCIE Mini card
(Support mSATA) |
|
Internal I/O |
1
x SATA3, 1
x LVDS,
1 x LCD inverter, 1 x PS/2,
2 x RS232,
1 x LPC,
1 x SMBUS, 1 x Audio,
2
x USB2.0,
1 x VGA(Optional) |
|
Rear
I/O |
2 x
LAN, 2 x
USB 3.0, 1 x HDMI,
1 x
DisplayPort(Optional) |
|
Power Requirement |
DC input 5V ± 5% |
|
Size & Thickness |
100mm x
72mm (L x W) |
|
Temperature |
Operating
within 0°C ~
60°C (32°F~140°F)
Storage within
-20°C~ 80°C
(-4°F~176°F)
(For LP-177
N3350/N4200 Series)
Operating
within -40°C ~
85°C (-40°F~185°F)
Storage within
-40°C~ 85°C
(-40°F~185°F)
(For LP-177
x7-E3950 Series) |
|
Relative Humidity |
10%~90%, non-condensing | |
|
Download
Datasheet @ PDF format
 |
|
BackToTop |
Ordering Information |
LP-177PN4S |
Intel® Pentium® Core™ Processor N4200 + Heat spreader,
support HDMI,
LVDS, DP |
LP-177TN4S |
Intel® Pentium® Core™ Processor N4200 + Heat spreader,
support HDMI,
LVDS, Header for VGA or 2nd LVDS (Note) |
LP-177PN3S |
Intel® Celeron® Core™ Processor N3350 + Heat spreader,
support HDMI,
LVDS, DP |
LP-177TN3S |
Intel® Celeron® Core™ Processor N3350 + Heat spreader,
support HDMI,
LVDS, Header for VGA or 2nd LVDS (Note) |
LP-177PN4F |
Intel® Pentium® Core™ Processor N4200 + Cooler Fan,
support HDMI,
LVDS, DP |
LP-177TN4F |
Intel® Pentium® Core™ Processor N4200 + Cooler Fan,
support HDMI,
LVDS, Header for VGA or 2nd LVDS (Note) |
LP-177PN3F |
Intel® Celeron® Core™ Processor N3350 + Cooler Fan,
support HDMI,
LVDS, DP |
LP-177TN3F |
Intel® Celeron® Core™ Processor N3350 + Cooler Fan,
support HDMI,
LVDS, Header for VGA or 2nd LVDS (Note) |
LP-177PEF |
Intel® Atom®
x7-E3950 Processor + Cooler Fan,
support HDMI,
LVDS, DP |
LP-177TEF |
Intel® Atom®
x7-E3950 Processor + Cooler Fan,
support HDMI,
LVDS, Header for VGA or 2nd LVDS (Note) |
ADP-3355 NB |
DP to VGA Adapter, without bracket |
| ADP-3460 |
DP to LVDS Adapter (For 2nd LVDS) |
DC-DC6 |
DC 12V to
DC 5V, 40W Converter Module with Heat spreader, Terminal block, provides 12V
connector for LCD inverter |
LP-177P(T)N4S-8G |
Same as LP-177P(T)N4S, but with DDR3L/8G |
LP-177P(T)N3S-8G |
Same as LP-177P(T)N3S, but with DDR3L/8G |
LP-177P(T)N4F-8G |
Same as LP-177P(T)N4F, but with DDR3L/8G |
LP-177P(T)N3F-8G |
Same as LP-177P(T)N3F, but with DDR3L/8G | Note: There are two modules (ADP3355,ADP3460), and you can choose one to support VGA
or 2nd LVDS |
