LP-150
 Pico-ITX motherboard with Rockchip RK3128 Quad-core Cortex-A7

Rockchip RK3128 Quad-core Cortex-A7 Processor.
Onboard DDR3, HDMI, LVDS, CVBS, LAN, USB 2.0, Audio, GPIO, WIFI ANT, SD, UART,
RTC, OTG, TP

view larger image

-
Overview
-
Feature
-
Specification
-

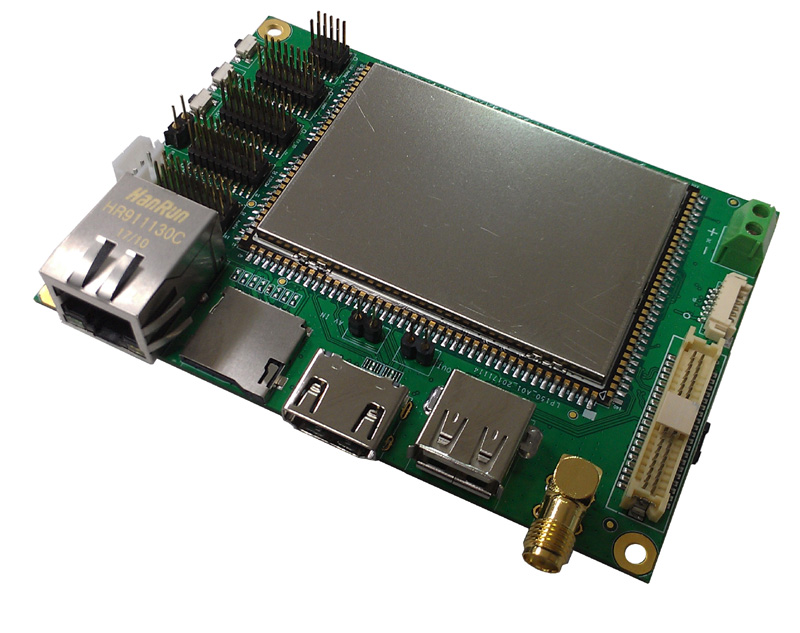

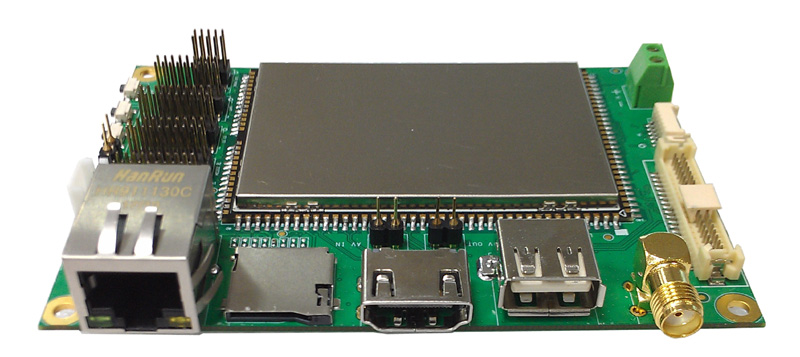

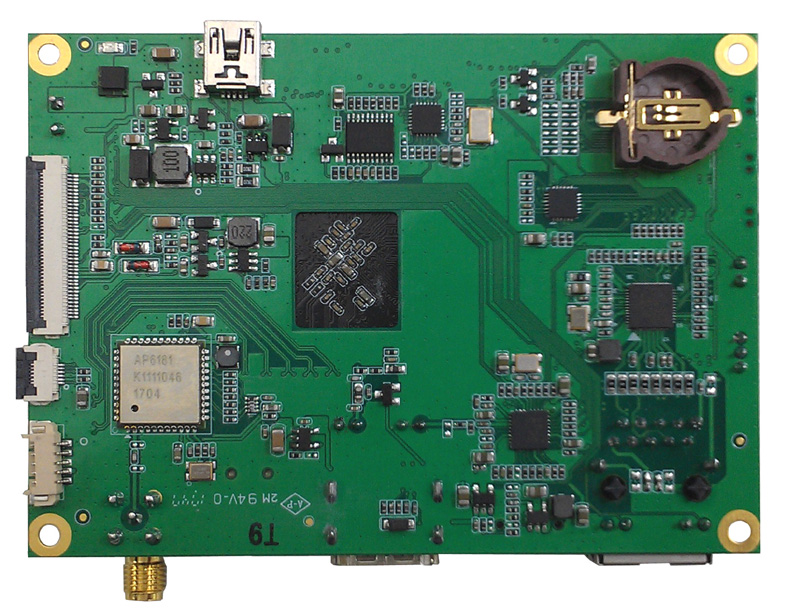

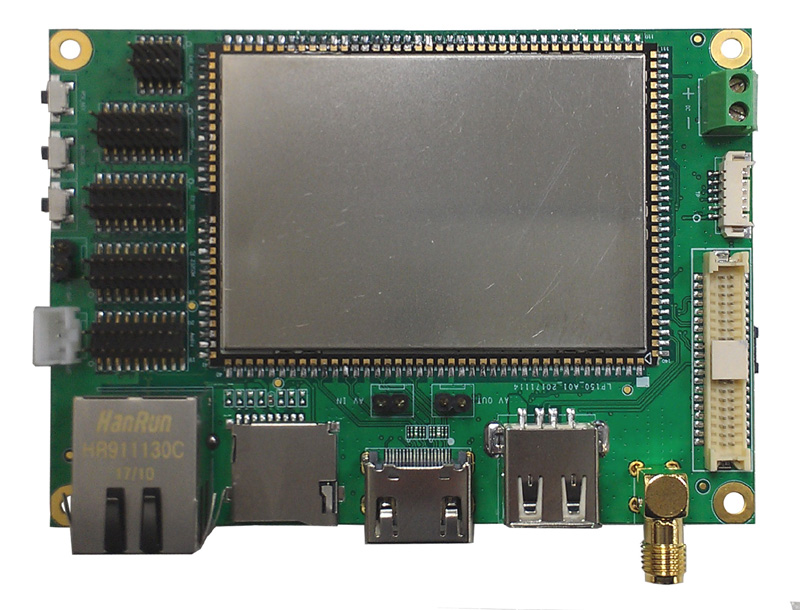

Product Image    Bottom    I/O
-
Ordering Information
-
Datasheet (PDF format)
-
Technical Document
Overview

   Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched a Pico-ITX form factor LP-150 consists of the Rockchip RK3128 Quad-core Cortex-A7.The COMMELL LP-150 platform provides , flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as transportation and industrial automation application.

      The LP-150 Pico-ITX Motherboard is designed for Rockchip RK3128 Quad-core Cortex-A7, onboard DDR3 512MB SDRAM. The platform is based on Graphics Technology that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. In addition, LP-150 integrated CVBS, HDMI, LVDS supports to provide its advanced solutions for imaging, machine vision and digital signage applications.





      LP-150 offers lots of features including data transfer interfaces such as USB 2.0, equipped with one RTL8211E Gigabit LAN, and it comes with 2 x RS232, 1 x USB Host 2.0, 1 x USB OTG 2.0, Audio.

BackToTop



Key Feature
  • CPURockchip RK3128 Quad-core Cortex-A7 Processor 1.3GHz.

  • Memory: Onboard DDR3 512MB SDRAM

  • Integrated Graphics: Integrated Graphics

  • LVDS interface: Onboard  LVDS connector supply

  • Flash Storage: 1 x 8GB onboard eMMC, 1 x Micro SD card slot

  • Audio: Built in audio codec for Line-in, and Head Phone out Interface

  • LAN Interface: RTL8211E Ethernet Transceiver with RGMII support

  • Onboard I/O: 1 x Power button, 1 x Recovery button, 1 x system reset button, 1 x RTC, 1 x LVDS, 1 x LCD inverter, 3 x UART, 2 x RS232, 1 GPIO, 1 x Audio

  • Panel I/O: 1 x Micro SD slot, 1 x RJ45, 1 x USB Host 2.0, 1 x USB OTG 2.0, 1 x HDMI, 1 x CVBS input , 1 x CVBS output, 1 x WiFi SMA Antennna, 1 x 5V DC-in

  • Power: DC input 5V ± 5%

  • Operation System: Android 4.4.4

BackToTop



Specification

Form Factor

Pico-ITX Motherboard

CPU

Rockchip RK3128 Quad-core Cortex-A7 Processor 1.3GHz

Memory

Onboard DDR3 512MB SDRAM

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Integrated Graphics

Integrated Graphics

LVDS Interface

Onboard  LVDS connector supply

Audio Interface

Built in audio codec for Line-in, and Head Phone out Interface

LAN Interface

RTL8211E Ethernet Transceiver with RGMII support

Onboard I/O

1 x Power button, 1 x Recovery button, 1 x system reset button, 1 x RTC, 1 x LVDS, 1 x LCD inverter, 3 x UART, 2 x RS232, 1 GPIO, 1 x Audio

Panel I/O

1 x Micro SD solt, 1 x RJ45, 1 x USB Host 2.0, 1 x USB OTG 2.0, 1 x HDMI, 1 x CVBS input , 1 x CVBS output, 1 x WiFi SMA Antennna, 1 x 5V DC-in

Power Requirement

DC input 5V ± 5%

Size & Thickness

100mm x 72mm (L x W)

 Temperature

Operating within 0°C ~ 70°C (32°F~158°F)

Download Datasheet @ PDF format

BackToTop

Ordering Information

LP-150

Rockchip RK3128 Quad-core Cortex-A7 Processor.
Onboard DDR3, HDMI, LVDS, CVBS, LAN, USB 2.0, Audio, GPIO, WIFI ANT,
 Micro SD, UART, RTC, OTG, TP
