LE-37M

3.5 inch Miniboard Intel® 8th & 9th Gen Core™ H-series Processor

Support Intel® 8th & 9th Gen Core™ H-series Processors with Intel® QM370 chipset, DDR4 up to 64 GB,

Integrated VGA, HDMI, DisplayPort, LVDS, 1 x Giga PHY LAN, 1 x Giga LAN, 4 x USB 2.0,

4 x USB 3.1 Gen2, 2 x RS232/422/485, 2 x RS232, HD Audio, 1 x PS/2, 2 x SATA3 with RAID, GPIO,

SMBus, 1 x Mini-PCIe socket (support mSATA), 1 x M.2 (Key E).

-

Overview

-

Feature

-

Specification

-

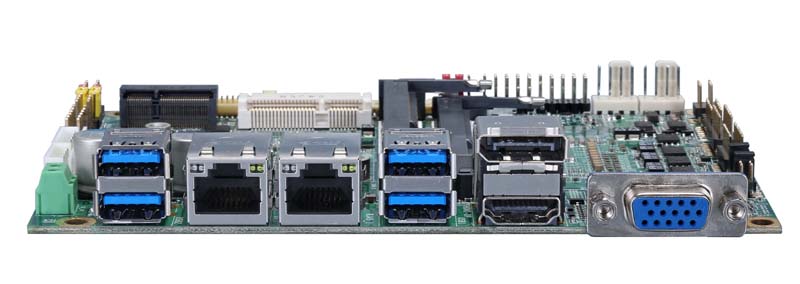

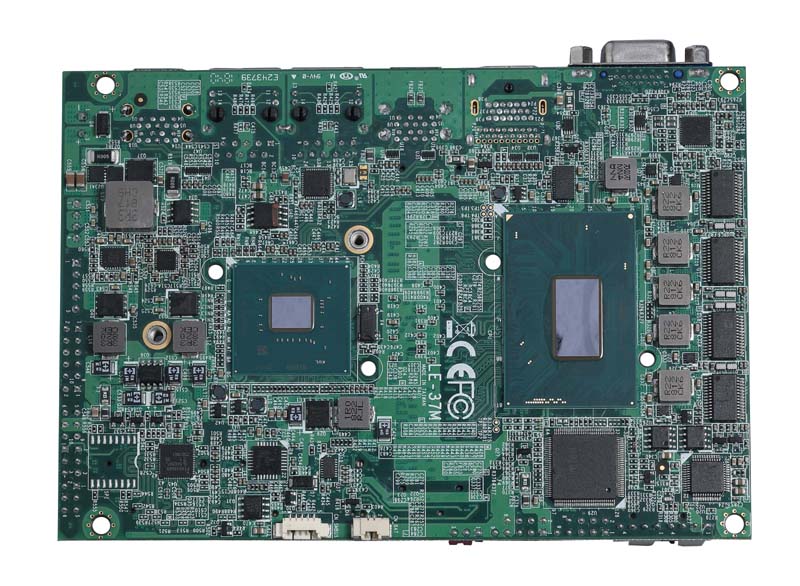

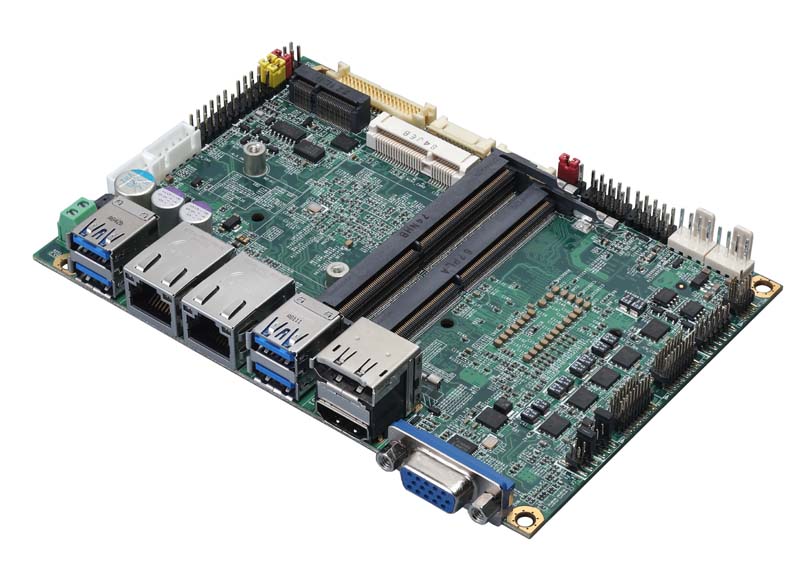

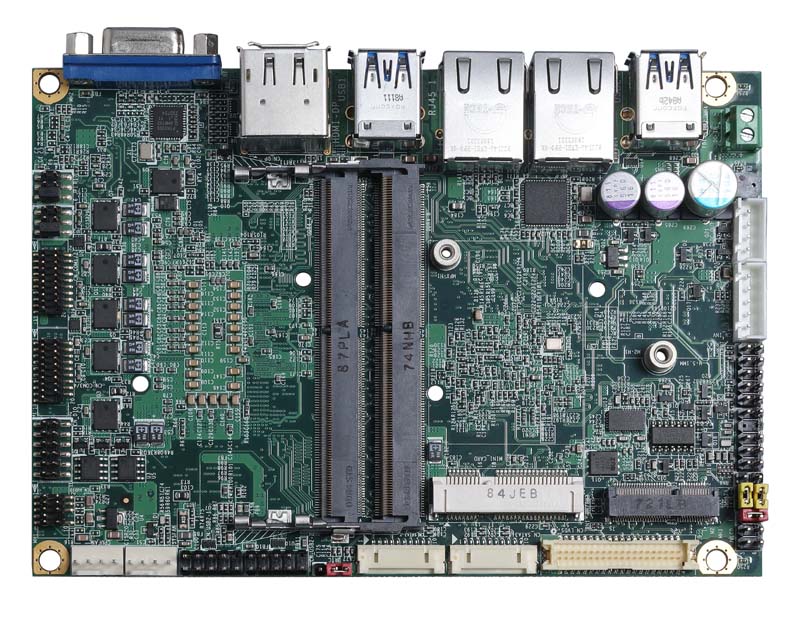

Product Image  TOP  BOTTOM  I/O

-

Ordering Guide

-

Datasheet (PDF format)

-

Technical Document

  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers,
unveiled LE-37M 3.5 inch Miniboard embedded system board based on 8th & 9th generation Intel® Core™

H-series processors.

The LE-37M 3.5 inch Miniboard platform is designed for the 8th & 9th generation Intel® Core™ H-series

processors in the FCBGA1440 package.support DDR4 memory (Two DDR4 SO-DIMM 2666 MHz up to 64GB).

The platform is based on Intel® UHD Graphics, this GPU offers 24 execution units (EUs) clocked at up to

1150Mhz(depending on the CPU model), The revised video engine now decodes H.265/HEVC completely

in hardware and thereby much more efficiently than before. Displays can be connected via 1 VGA, 1 LVDS,

1 HDMI and one DP port up to three displays can be controlled simultaneously. LE-37M offers lots

of features including high-speed data transfer interfaces such as 4 x USB3.1 Gen2 and 2 x SATA3, equipped

with dual Gigabit Ethernet, and comes with PS/2 port, 2 x RS232 and 2 x RS232/422/485, 4 x USB2.0, Intel®

High Definition Audio, and 1 x MiniPCIe socket(Supports mSATA), 1 x M.2 (Key E).

BackToTop

  Key Feature

• CPU: Intel® 8th & 9th Gen Core™ H-series Processor in the FCBGA1440 package.

• Memory: 2 x DDR4 2666 MHz SO-DIMM up to 64 GB, support Non-ECC, unbuffered memory.

• Chipset: Intel® QM370 chipset.

• Integrated Graphics: Intel® UHD Graphics.

• LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/+12V supply

• DisplayPort interface: Onboard DisplayPort connector. (Only LE-37M5 & LE-37M7)

• HDMI interface: Onboard HDMI connector.

• VGA interface: Onboard DB15 VGA connector.

• LAN Interface: 1 x Intel® i219-LM Gigabit PHY LAN(Support iAMT 12.0), 1 x Intel® i210-AT Gigabit LAN.

• Serial ATA: Support 2 x SATA3.

• Audio: Realtek ALC262 High Definition Audio.

• Internal I/O: 2 x SATA3, 2 x RS232, 2 x RS232/422/485, 4 x USB2.0, 1 x LVDS, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBus.

• Rear I/O: 1 x DisplayPort(Only LE-37M5 & LE-37M7), 1 x HDMI, 1 x VGA, 4 x USB3.1 Gen2, 2 x LAN.

• Extended interface: 1 x PCIE Mini card (Support mSATA), 1 x M.2 (Key E).

• GPIO interface: Onboard programmable 8-bit Digital I/O interface.

• Power requirement: DC input 9~35V.

BackToTop

  Specification

Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LE-37M5

With i5-8400H, QM370 support HDMI, VGA, LVDS, DP

LE-37M7

With i7-8850H, QM370 support HDMI, VGA, LVDS, DP

With i5-8400H, QM370 support HDMI, VGA, LVDS, Header for 2^nd VGA or 2^nd LVDS (Note)

With i7-8850H, QM370 support HDMI, VGA, LVDS, Header for 2^nd VGA or 2^nd LVDS (Note)

ADP-3355

DisplayPort to VGA module

ADP-3460

DisplayPort to LVDS module

 Note: There are two module (ADP-3355, ADP-3460), and you can choose one to support 2nd  VGA or 2nd  LVDS.

 If you want to use other 9th Gen CPU(i3-9100HL,i7-9850HL, i7-9850HE), please contact with our sales. e-mail: info@commell.com.tw .
