LE-375

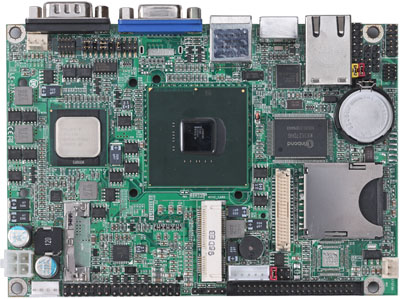

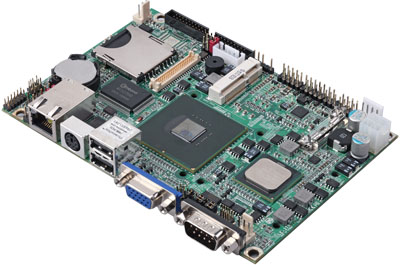

    Fanless 3.5" Embedded Miniboard for Intel® AtomTM solution

3.5" SBC with Intel® Z510P & US15WP, DDR2 SO-DIMM up to 2GB,
VGA, LVDS, DVI, IDE, HD Audio, RS232 and RS232/422/485 , 6 x USB2.0,
Digital I/O, DC 9~24V, PCIE mini card, CF, SD 1.1

view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
Overview

LE-375, the embedded 3.5" mini board based on the Intel® AtomTM Z510P/Z510PT/Z520PT processor and Intel® System Controller Hub US15WP/US15WPT for embedded lifecycle support.

The combination of high performance, low power and integrated graphics/video makes this platform well-suited for many embedded market segments such as in-vehicle infotainment, industrial control and automation, gaming, diagnostic and therapeutic medical devices, media phones, and retail and transaction solutions.

BackToTop



Key Feature
  • CPU: Intel® AtomTM Z510P / Z510PT / Z520PT.

  • Memory1 x DDR2 SO-DIMM up to 2GB.

  • Chipset: Intel® SCH US15WP / US15WPT.

  • VGA Interface: Intel® integrated extreme GMA 500 technology.

  • LVDS interface: Onboard 18/24-bit single channel LVDS or dual channel LVDS.

  • DVI interface: Onboard DVI interface connector.

  • IDE: 1 x 44-pin IDE interface supports two devices (master/slave).

  • LAN Interface1 x Intel® 82574 Giga LAN.

  • AudioIntegrated SCH with Realtek ALC888 HD Audio.

  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.

  • Extended interfaceOne PCIE mini card socket.

  • External I/O ports: 1 x COM, 1 x VGA/DVI, 2 x USB2.0 ports, 1 x PS/2 keyboard and mouse ports, 1 x RJ45.

  • SSD: CompactFlash Slot and one SD 1.1 socket.

  • P/S: DC 9~24V in.



BackToTop



Specification


Form Factor

3.5" Miniboard (146 x 101 mm)

CPU

Intel® AtomTM Z510P, 1.1GHz, 400MHz FSB, 512K cache

Intel® AtomTM Z510PT, 1.1GHz, 400MHz FSB, 512K cache

Intel® AtomTM Z520PT, 1.33GHz, 533MHz FSB, 512K cache

Package type : 437-pin FCBGA8 with an IHS

Memory

1 x 200-pin DDR2-400 SO-DIMM SDRAM up to 2GB

Support Non-ECC, unbuffered memory only

*Memory chip with width x16 bits is strongly recommended!

Chipset

Intel® SCH US15WP / Intel® SCH US15WPT

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset internal timer for 1min(sec) ~ 255min(sec)

Power Management

ACPI 1.0 compliant, supports power saving mode

Integrated Graphics

Intel® integrated extreme GMA 500(Graphic Media Accelerator) Technology

Video Memory

Up to 256MB shared with system memory

VGA Interface

Chrontel CH7317A with DSUB15 connector (optional)

LVDS Interface

Chipset Integrated 18/24-bit single channel LVDS

Chrontel CH7308 for 18/24-bit dual channel (optional)

DVI Interface

Chrontel CH7307C with DVI connector (optional)

Solid State Disk

IDE supports 44-pin DiskOnModule +5V power supply

1 x CompactFlash Type-II, 1 x SD 1.1 socket

Audio Interface

Intel® SCH integrated with Realtek ALC888 HD Codec

LAN Interface

1 x Intel® 82574L / 82574IT Gigabit Ethernet controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Expansion Interface

1 x PCIe mini card socket

Internal I/O Port

1 x IrDA, 1 x GPIO, 1 x Audio, 1 x CDIN, 4 x USB2.0, 1 x SMBus,

1 x LVDS, 1 x LCD Inverter, 1 x RS232/422/485, 1 x LPC

External I/O Port

1 x COM, 1 x VGA/DVI, 1 x RJ45, 2 x USB2.0, 1 x PS2

Power Requirement

9~24V full range DC input

Board Dimension

146mm x 101mm (L x W)

Operation Temperature

0 ~ 60ºC (32 ~ 140ºF)



Download Datasheet @ PDF format

BackToTop

Ordering Guide

LE-375QT

3.5" Miniboard with Intel® AtomTM Z510P, VGA, 18/24-bit single channel LVDS

LE-375QD

3.5" Miniboard with Intel® AtomTM Z510P, DVI, 18/24-bit single channel LVDS

LE-375QX

3.5" Miniboard with Intel® AtomTM Z510P, 18/24-bit dual channel LVDS

LE-375RT

Same as LE-375QT but with Intel® AtomTM Z510PT, Intel® SCH US15WPT,

Intel® 82574IT Gigabit Ethernet controller (Wide-Temperature Solution Board)

LE-375RD

Same as LE-375QD but with Intel® AtomTM Z510PT, Intel® SCH US15WPT,

Intel® 82574IT Gigabit Ethernet controller (Wide-Temperature Solution Board)

LE-375RX

Same as LE-375QX but with Intel® AtomTM Z510PT, Intel® SCH US15WPT,

Intel® 82574IT Gigabit Ethernet controller (Wide-Temperature Solution Board)

LE-375PT

Same as LE-375QT but with Intel® AtomTM Z520PT, Intel® SCH US15WPT,

Intel® 82574IT Gigabit Ethernet controller (Wide-Temperature Solution Board)

LE-375PD

Same as LE-375QD but with Intel® AtomTM Z520PT, Intel® SCH US15WPT,

Intel® 82574IT Gigabit Ethernet controller (Wide-Temperature Solution Board)

LE-375PX

Same as LE-375QX but with Intel® AtomTM Z520PT, Intel® SCH US15WPT,

Intel® 82574IT Gigabit Ethernet controller (Wide-Temperature Solution Board)

MPX-3132

PCI Express mini card supports 2 x SATAII (RAID 0, RAID 1)

SPD-080-12

AC-DC Adapter With 12V, 80W DC Jack Output

ADP-L2T

18-bit LVDS to TTL module
