LE-370

Intel Pentium / Celeron M processor, Intel 852GME & ICH4 Chipset.

24-bit LVDS Interface, fast LAN , Compact Flash socket interface.

USB 2.0, RS232 ports , Mini-PCI  interface

-

Overview

-

Feature

-

Specification

-

Product Image

-

Ordering Guide

-

Datasheet (PDF Format)

-

Technical Document

  Overview

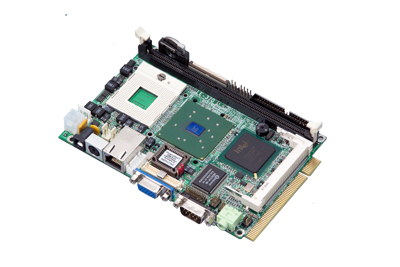

COMMELL's LE-370 is 3.5" Embedded  Minboard based on Intel Pentium M / Celeron M CPU ,With Intel 852GME & ICH4 Chipset. LE-370 support DDR 266/333 SDRAM up to 1GB,

Intel 852GME built-in Intel Extreme Graphic Technology.

24-bit Dual channel LVDS interface and onboard 5-pin LCD inverter connector , CF socket .

Intel fast LAN , Internal USB 2.0 and RS232 ports.Mini-PCI interface.

BackToTop

  Key Feature

• Compact embedded miniboard with 3.5" drive size, 146 x 101 mm of dimension.

• Intel Pentium M / Celeron M processor . FSB 400/533MHz.

• Intel 852GME built-in Intel Extreme Graphic Technology.

• 1 x 184-pin DDR 266/333 SDRAM up to 1GB .(ECC memory supported)

• 24-bit LVDS interface and 64 MB video memory

• Integrated AC97 audio, One 10/100 Mbps Fast Ethernet interface.

• GPIO Interface and  IDE1 support DiskOnModule with +5V power supply.

• Extended PCI Interface through optional riser card up to 2 devices.

• 1 x Mini-PCI slot.2 x USB 2.0. 2 x COM.

• Onboard CompactFlash socket supports CFC (Compact Flash Card)

• DC +12V Input.

BackToTop

  Specification

• Form Factor: 3.5" Embeded miniboard

• CPU: Intel Pentium M / Celeron M processor.  ( Intel Celeron M 4xx series can't support )

• Memory: 1 x 184-pin DDR 266/333 SDRAM up to 1GB .(ECC memory supported)

• Chipset : Intel 82852GME & ICH4

• Real Time Clock : Chipset Integrated RTC with onboard lithium battery

• Watchdog Timer : Generates a system reset with internal timer for 1min ~ 255min

• Power Management : ACPI 1.0 compliant, supports power saving mode with ATX PSU

• PCI Enhanced IDE: One ATA100 IDE channel supports up to 2 ATAPI devices.Onboard 1 x 44-pin IDE connectors

• VGA Interface: Intel 852GME built-in Intel Extreme Technology

• LCD Interface: 24-bit LVDS interface up to 1600 x 1200 of resolution.Onboard 5-pin LCD inverter connector.

• LAN Interface: 1 x Intel 82562ET 10/100Mbps PHY.

• Audio Interface: Realtek ALC201A AC97 Codec.

• Solid State Disk: IDE1 supports DiskOnModule with + 5V power supply.1 x CF socket.

• Internal I/O Ports: 1x IrDA port, 1x Parallel and 2 x USB ports.1 x Serial Port, 1x silm FDD ,1 x VGA output header.

• External I/O Ports: 1 x RJ45 LAN ports, 1x DB15 VGA port and 1x PS/2 port, 1x RS232 port, 1 x Phone jack. 1x DC Jack

• Extended Interface: 1 x  Mini-PCI slot.  Extended PCI interface through optional riser card up to 2 devices.

• Power Requirement : DC 12V input

• Board Dimension : 146 mm x 101 mm (L xW)

Download datasheet @ PDF format
