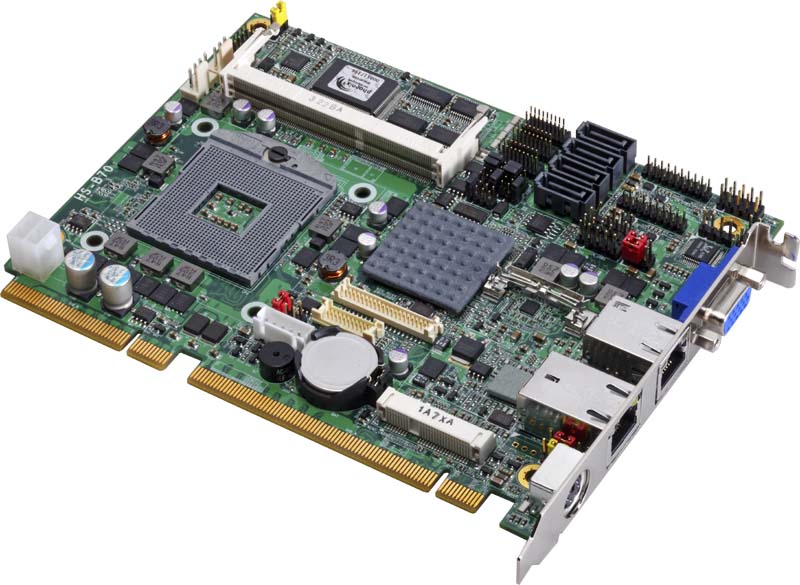

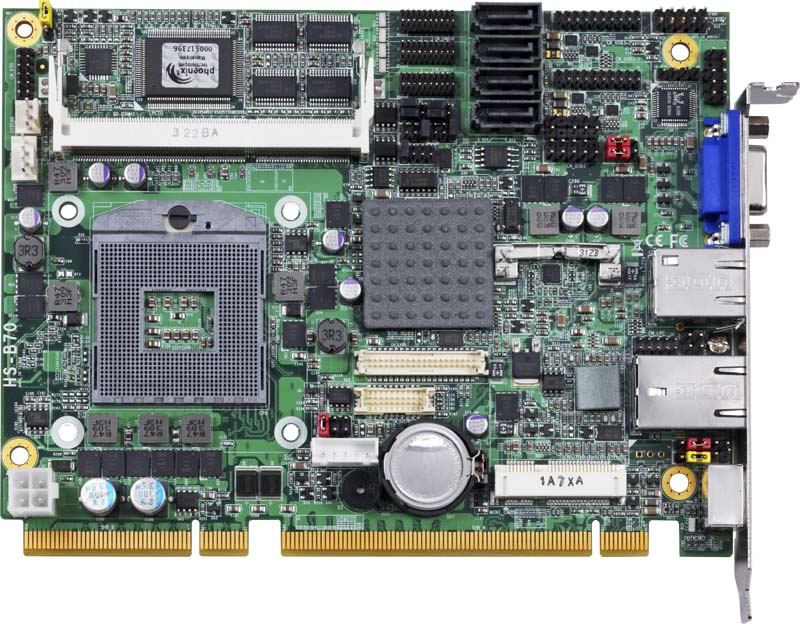

HS-B70
Half-size / PICMG 1.3 SBC support 3rd generation Intel® Core™ i7 / i5 / i3

Support 3rd generation  Intel® Core i7 / i5 / i3 / Mobile CPU with
Mobile Intel® QM77 Express, onboard VGA, LVDS & DVI, 16 GB DDR3
2 x Giga LAN, 2 x USB 2.0, 4 x USB 3.0, 6 x COM, 4 x SATA, HD Audio, GPIO
1 x Mini-PCIe sockets.

view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Single board computer , introduced the PICMG 1.3 SBC HS-B70 that designed for the 3rd generation Intel Core i7/i5/i3 processors in the rPGA988B socket. HS-B70 based on intel QM77 Express chipset, QM77 Express chipset is part of the mobile Intel 7 Series Chipset family, along with a intel 3rd generation 22 nm Core i7/i5/i3, the Intel processors  with HD Graphic 4000 that contains a refresh of the seventh generation graphics core, DX11 Smoother rendering at higher resolutions for an improved 3D experience, OGL4.X  Improved realism for OGL 3D . based application and lower power consumption, this innovative two-chip solution provides Intel Intel Hyper-Threading technology which giving you smart multitasking performance to move between applications quickly. This platform delivers higher performance, energy efficiency, most secure and manageable, It is ideal for a various range of applications, such as industrial control and automation, gaming, Medical Instruments, Surveillance Server, Military systems, print imaging and digital signage etc.

Onboard Intel® 82579LM GbE controller support Intel® AMT 8.0 feature on primary LAN port. The BIOS is ready to support Intel® AMT 8.0 feature. The necessary prerequisite is your CPU must support Intel® vPro technology, ex. i7-3610QE

For further instruction about the Intel® AMT features and set up, please refer to the iAMT Setting.pdf

BackToTop

  Key Feature
  • CPUIntel® 3rd generation Core™ i7/ i5/ i3/  Mobile in the rPGA988B socket

  • MemoryTwo DDR3 1006/1333/1600 MHz up to 16 GB

  • Chipset: Mobile Intel® QM77 Express chipset

  • LVDS interface: onboard 24-bit dual channel LVDS interface

  • VGA Interface: Integrated Intel® HD graphic technology

  • DVI interface: Onboard 20-pin DVI-D interface

  • LAN Interface1 x Intel® 82574L Giga LAN1 x Intel® 82579LM Giga LAN(Support iAMT8.0).

  • Serial ATA: Support 2 x Serial ATA II and 2 x Serial ATA III

  • Audio: Realtek ALC888 High Definition Audio.

  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 4 x USB3.0 ports,

                          2 x USB2.0 ports

  • Extended interface: 1 x Mini-PCIe sockets.

  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.

BackToTop

  Specification


Form Factor

Half-size PICMG 1.3 CPU card

Processor

3rd generation Intel® Core i7 / i5 / i3 Mobile processor

Package Type: rPGA988B

Memory

2 x DDR3 1066/1333/1600 SO-DIMM up to 16 GB

Chipset

Mobile Intel® QM77 Express chipset

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

ACPI 3.0 compliant, supports power saving mode

Serial ATA Interface

2 x Serial ATA II interface up to 300MB/s

2 x SATAIII interface up to 600MB/s. Total 4 x SATA interface

Integrated Graphics

Intel® Core™ integrated HD Graphics 4000 Technology

LVDS Interface

Onboard 24-bit dual channel LVDS interface

VGA Interface

Integrated Intel® HD graphic technology

 DVI Interface  Onboard 20-pin DVI-D interface

Audio Interface

Realtek ALC888 HD Audio

LAN Interface

1 x Intel® 82574L Gigabit Ethernet Controller

1 x Intel® 82579LM Gigabit Ethernet Controller(Support iAMT8.0)

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

 1 x Mini-PCIe sockets ,  mSATA (Optional)

Internal I/O Port

1 x RS232/422/485, 5 x RS232,1x SMBUS, 1 x GPIO, 1 x CDIN,

4 x USB3.0 ports, 2 x USB2.0 ports, 1 x Front panel

 Audio and 1 x CDIN, 1 x IrDA, 1  x VGA

External I/O Port

1 x CRT Port, 2 x RJ45 and 1 x PS/2 Keyboard/Mouse Port

Power Requirement

+12V , 5VSB & 3VSB from Backplane

Board Dimension

168 mm x 126 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

HS-B701

Intel PGA988B+ QM77 Onboard VGA, LVDS, DVI, LAN, USB2.0, USB3.0, HD Audio, SATAII ,SATAIII, SMBUS, LPC, IrDA, GPIO and PCI Express mini card ( mSATA for Option ) ,Supports 4 PCIE 1X .

HS-B704

Intel PGA988B+ QM77 Onboard VGA, LVDS, DVI, LAN, USB2.0, USB3.0, HD Audio, SATAII ,SATAIII, SMBUS, LPC, IrDA, GPIO and PCI Express mini card ( mSATA for Option ) ,Supports 1 PCIE 4X .

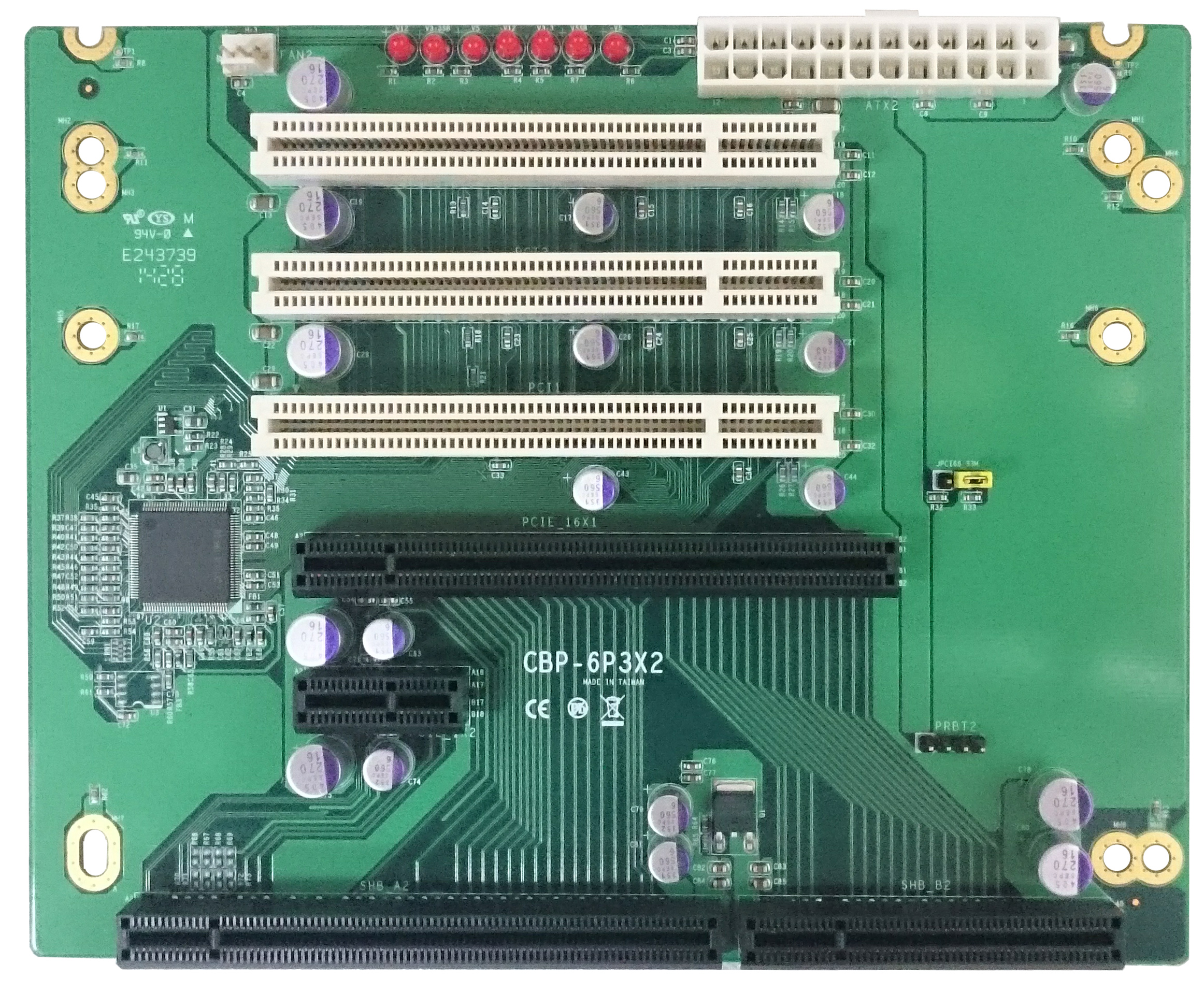

CBP-6P3X2   3 PCI + 1 PCIe x16 + 1 PCIe x1 Active Backplane    User's manual
