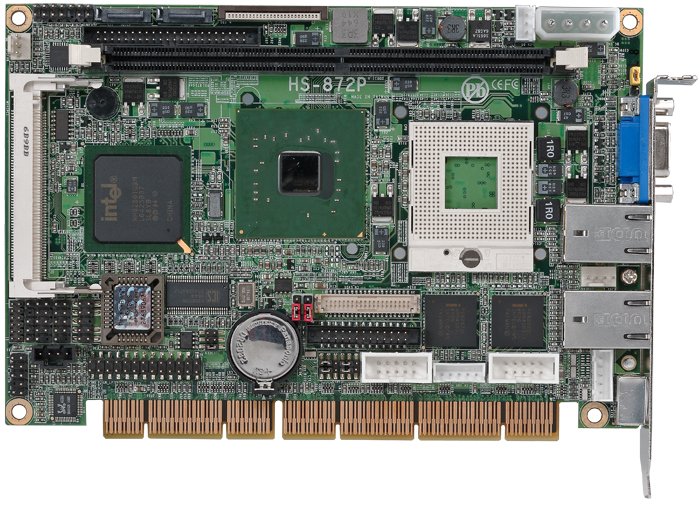

HS-872P - Intel  CoreTM  Duo / Core 2 Duo  PISA CPU  Card
Intel CoreTM Duo / Core 2 Duo processor support with Intel 945GME & ICH7M ,
DDR2 up to 2GB , Intel Gigabit Ethernet , Mini-PCI , AC97 Audio , USB 2.0
DVI , LVDS , SATA and CompactFlash .


view larger image





-

Overview
-

Feature
-

Specification
-

Product Image
-

Ordering Guide
-

Datasheet (PDF format)
-

Technical Document
  Overview

COMMELL, the worldwide leader of Industrial SBC, introduced the PISA platform HS-872P based on Intel 945GME and ICH7M Chipset, which supports Intel CoreTM Duo / Core 2 Duo processor at 667 MHz FSB, It's Provides up to 25% faster data transfer rate compared to the previous generation bus speed, DDR2 533/667 memory architecture in configurations of up to 2.0 GB RAM, The new Intel® Graphics Media Accelerator (GMA) 950 provides incredible visual quality, versatile display options, The ICH7M integrated with Realtek 5.1-CH Audio. 18-bit Dual Channel LVDS & DVI & HDTV interface .

The HS-872P comes with floppy, PS/2 Keyboard and Mouse, UltraATA33 EIDE, 1 x RS232 & 1 x RS232/422/485, 2 x SATA  with 150MB/s transfer rate, Networking is provided by Intel 82573L Gigabit Ethernet. 4 x USB2.0 ports for 40X faster data transfer rate and backward compatible to support USB 1.1 devices, 1 x IrDA and GPIO interface. Peripherals also include Mini-PCI slot, the Mini-PCI slot is designed to accommodate the most power-hungry expansion card, e.g. Wi-Fi card.

Additionally, HS-872P is also equipped with CompactFlash Interface for easily using any memory card.

BackToTop

  Key Feature

  • CPU: Intel CoreTM Duo / Core 2 Duo Merom with Socket M @  533 / 677 MHz FSB.

  • Memory: One 240-pin DDR2 533/667MHz up to 2.0 GB.

  • Chipset: Intel 945GME and ICH7M.

  • VGA Interface: built-in Intel Graphics Media Accelerator (GMA) 950 technology.

  • LVDS interface: Onboard 18-bit Dual channel LVDS connector.

  • DVI interface: Chrontel CH7307 DVI transmitter with 26-pin DVI interface

  • Enhanced IDE: One UltraATA33 IDE interface supports up to 2 ATAPI Devices.

  • Serial ATA: 2 x Serial ATA interface with 150 MB/s transfer rate.

  • LAN Interface: 2 x Intel 82573L Gigabit Ethernet .

  • Audio: Realtek ALC655 5.1 channel Audio.

  • Solid State Disk: IDE supports 44-pin DiskOnModule . CompactFlash Type-II socket onboard

  • GPIO interface: Onboard 8-bit Digital I/O interface.

  • Extended interface: 1 x Mini-PCI socket

  • I/O ports: PS/2 Keyboard/Mouse , LPT , VGA , LAN , USB2.0 , Audio , DVI , IrDA



BackToTop

  Specification


Form Factor

Half-size PISA CPU Card

CPU

Intel CoreTM Duo / Core 2 Duo Merom with Socket M @  533 / 677 MHz FSB.

Memory

1 x DDR2 533/667 MHz SDRAM up to 2.0 GB

Chipset

Intel 945GME & ICH7M

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset  internal timer for 1min ~ 255 min

Power Management

ACPI 1.0 compliant, supports power saving mode

PCI Enhanced IDE


1 x Ultra ATA33 IDE channel up to 2 ATAPI devices

VGA Interface

Intel 945GME integrated GMA (Graphic Media Accelerator) 950 Technology

Video Memory

Up to 224MB shared with system memory

Serial ATA Interface

2 x Serial ATA Interface  with 150 MB/s transfer rate.

Audio Interface


Realtek ALC655  5.1 channel Audio

LAN Interface

2 x Intel 82573L Gigabit Ethernet.( HS-872PDG2 Model only)

Solid State Disk

IDE supports 44-pin DiskOnModule .

CompactFlash Type-II on the rear .

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extend Interface

1 x Mini-PCI socket

External I/O Port

2x RJ45 LAN port, 1x DB15 VGA port, 1 x  PS/2 Keyboard / Mouse ports,

    Internal I/O Port

    1 x RS232 & 1 x RS232/422/485, 1 x FDD, 1 x IrDA , 1 x LPT

    4 x USB 2.0, 1 x 8-bit GPIO, 1 x Audio, 1 x CDIN , 1x DVI

    LVDS and LCD inverter connector , HDTV

Power Requirement

+5V , +12V input & 5VSB Requirement

    Board Dimension     185mm x 127 mm (L x W)

Operation Temperature

 0 ~ 60 ℃



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

    HS-872PEDG

Intel CoreTM Duo / Core 2 Duo PISA SBC with onboard VGA, DVI, 18-bit LVDS, Giga LAN,  SATA,  USB 2.0 ports Audio, RS232/422/485

Min-PCI, CompactFlash socket.

        HS-872PEDG2

Same as above and with secondary Gigabit LAN

CBP-5P2

 2 PCI + 2 ISA + 1 CPU (PISA) Backplane
MP-954 Mini-PCI Card support 3 x RS232 & 1 x RS232/422/485
MP-323 Mini-PCI Card support 3 x IEEE 1394
