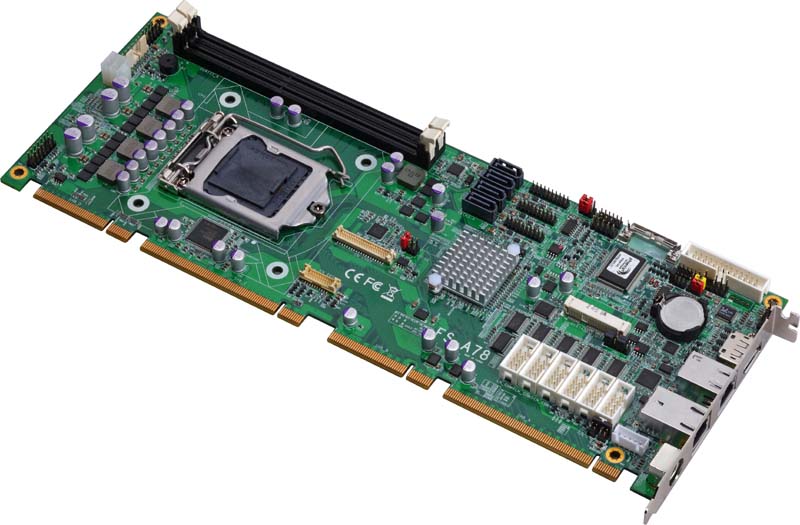

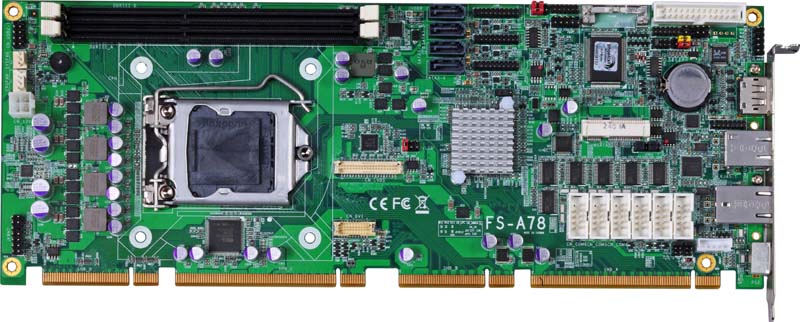

FS-A78
PICMG 1.3 SBC support 4th generation Intel® Core™ i7 / i5 / i3

Support  4th generation  Intel® Core i7 / i5 / i3, Celeron and Pentium CPU with
Intel® Q87 Express, DDR3/DDR3L up to 16GB, Onboard DisplayPort, VGA & DVI & LVDS,
2 x Giga LAN, 4 x USB 2.0, 6 x USB 3.0, 6 x COM, HD Audio, 4 x SATAIIl with RAID, IrDA,
SMBUS, GPIO, 1 x Mini-PCIe .


view larger image

-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched PICMG 1.3 SBC with Q87 Chipset.

FS-A78 designed for the 4th generation Intel Core i7/i5/i3/Celeron/Pentium desktop  processors in the FCLGA1150 by the Q87 chipset.  is part of the desktop Intel 7 Series Chipset family, along with a intel 4th generation 22 nm Core i7/i5/i3/Celeron/Pentium, the Intel processors  with HD Graphic 4000 that contains a refresh of the seventh generation graphics core, DX11 Smoother rendering at higher resolutions for an improved 3D experience, OGL4.X  Improved realism for OGL 3D . based application and lower power consumption, this innovative two-chip solution provides Intel Intel Hyper-Threading technology which giving you smart multitasking performance to move between applications quickly. This platform delivers higher performance, energy efficiency, most secure and manageable, It is ideal for a various range of applications, such as industrial control and automation, gaming, Medical Instruments, Surveillance Server, Military systems, print imaging and digital signage etc.

FS-A78 SBC is based on Q87 chipset, and equipped with DDR3/DDR3L 1333/1600 MT/s data transfer rates memory up to a maximum of 16GB in dual DIMM slots.

FS-A78 supports DisplayPort, VGA, DVI, LVDS. 5 x RS232 and 1 x RS232/422/485 ports, Networking is provided by Intel 1 x I210-AT Giga LAN and 1 x I210-LM Giga LAN, 4 x USB2.0 ports, 6 x USB3.0 ports, High Definition Audio port, 4 x SATA3.0, 1 x Mini-PCIE expansion slot.

Onboard Intel® I210-LM GbE controller support Intel® AMT 9.0 feature on primary LAN port. The BIOS is ready to support Intel® AMT 9.0 feature. The necessary prerequisite is your CPU must support Intel® vPro technology. ex : Intel ® Core i7

For further instruction about the Intel® AMT features and set up, please refer to the iAMT Setting.pdf

BackToTop

  Key Feature
  • CPU: Intel® 4th generation Core™ i7/ i5/ i3/Celeron/Pentium in the FCLGA1150  socket

  • Memory2 x DDR3/DDR3L (support 1.5V) 1333/1600 DIMM up to 16 GB

  • Chipset: Intel® Q87 Express Chipset

  • Display InterfaceOnboard DisplayPort & VGA & DVI & LVDS.

  • LAN Interface2 x Giga LAN.

  • Serial ATA: Support four  SATA3 with RAID 0,1,5,10.

  • Audio: Intel® Q87 integrated with Realtek ALC888 High Definition Audio.

  • Internal I/O port: 4 or 5 x RS232, 1 x RS232/422/485, 4 x USB2.0, 6 x USB3.0, 1 x VGA, 1 x DVI, 1 x LVDS, 1 x LCD inverter, 1 x Audio, 1 x IrDA, 1 x SMBUS, 1 x LPC, 1 x LPT(Parallel port), 1 x GPIO, 4 x SATAIII.

  • External I/O port: 1 x RS232(FS-A78G01 & FS-A78G04)1 or 2 x LAN, 1 x PS/2, 1 x DisplayPort.

  • Extended interfacePICMG 1.3 Interface Support 1 x PCI-Express x16 and 1 x PCI-Express x4 or 4 PCI-Express x1, 4 x PCI, 1 x mSATA(only Support SATAIII)

  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.

BackToTop

  Specification


Form Factor

PICMG 1.3 SBC

Processor

Supports 4th Generation Intel®  Core i7/ i5/ i3/ Celeron/ Pentium Desktop Processor

Package Type: FCLGA1150

Memory

2 x DDR3/DDR3L (support 1.5V) 1333/1600 DIMM up to 16 GB

Chipset

Intel® Q87 Express Chipset

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

ACPI 4.0 compliant

Serial ATA Interface

Intel® Q87 PCH built-in 4 x Serial ATAIII interface up to 600MB/s Support RAID 0, 1, 5, 10 and Intel Rapid Storage Technology.(not support SATA II device)

VGA Interface

Intel® Clear Video integrated HD Graphics Technology

 DVI Interface Onboard 20-pin DVI interface
 LVDS Interface Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

Audio Interface

Intel® integrated Q87 with Realtek ALC888 HD Audio

LAN Interface

1 x Intel® I210-AT & 1 x Intel® I217-LM Gigabit Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

Support 1 PCI-Express x16 and 1 PCI-Express x4 or 4 PCI-Express x1, 4 PCI, mSATA (mSATA only Support SATAIII)

Internal I/O Port

1 x RS232/422/485, 4 or 5 x RS232, 1 x GPIO, 1 x Audio, 1 x IrDA, 1 x SMBUS, 1 x CRT, 1 x DVI, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 1 x LPT(Parallel port), 4 x USB2.0, 6 x USB3.0, 4 x SATAIII

External I/O Port

1 x PS/2, 1 x DisplayPort, 1 or 2 x LAN, 1 x RS232(FS-A78G01&FS-A78G04)

Power Requirement

+5V, +12V & 5VSB

Board Dimension

338 mm x 126 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

FS-A78G01

Onboard DVI, CRT, LVDS, DisplayPort, USB3.0 & 2.0, 6 x Serial Port, SATAIII, IrDA, GPIO, LPC, LPT, Realtek HD Audio, SMBUS, mSATA, 1 x Gigabit LAN (I217-LM).Support 1 PCI-Express x16 and 4 PCI-Express x1

FS-A78G04

Onboard DVI, CRT, LVDS, DisplayPort, USB3.0 & 2.0, 6 x Serial Port, SATAIII, IrDA, GPIO, LPC, LPT, Realtek HD Audio, SMBUS, mSATA, 1 x Gigabit LAN (I217-LM).Support 1 PCI-Express x16 and 1 PCI-Express x4

FS-A78G201

Onboard DVI, CRT, LVDS, DisplayPort, USB3.0 & 2.0, 6 x Serial Port, SATAIII, IrDA, GPIO, LPC, LPT, Realtek HD Audio, SMBUS, mSATA, 2 x Gigabit LAN.Support 1 PCI-Express x16 and 4 PCI-Express x1

FS-A78G204

Onboard DVI, CRT, LVDS, DisplayPort, USB3.0 & 2.0, 6 x Serial Port, SATAIII, IrDA, GPIO, LPC, LPT, Realtek HD Audio, SMBUS, mSATA, 2 x Gigabit LAN.Support 1 PCI-Express x16 and 1 PCI-Express x4

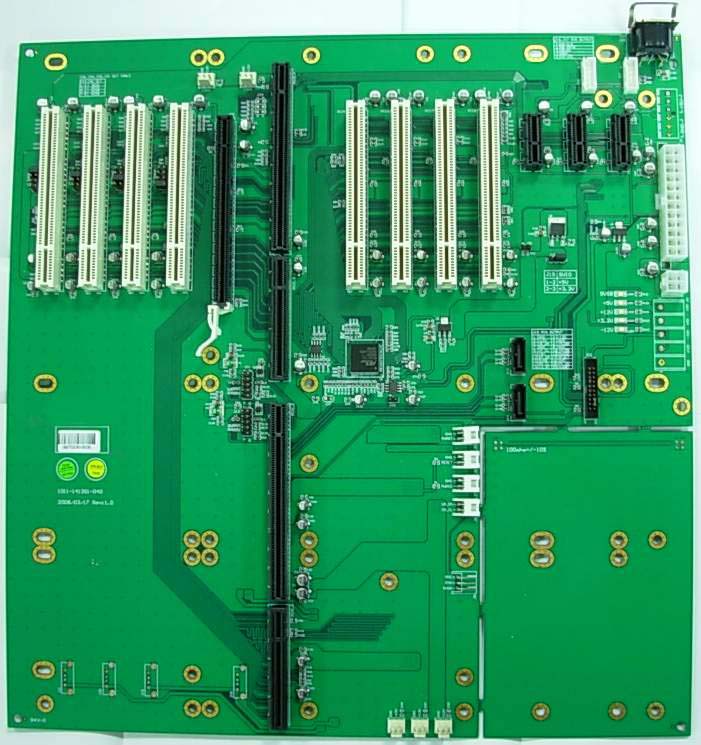

DBPE-1308A

 8 PCI + 1 PCIe x16 + 3 PCIe x1 Active Backplane

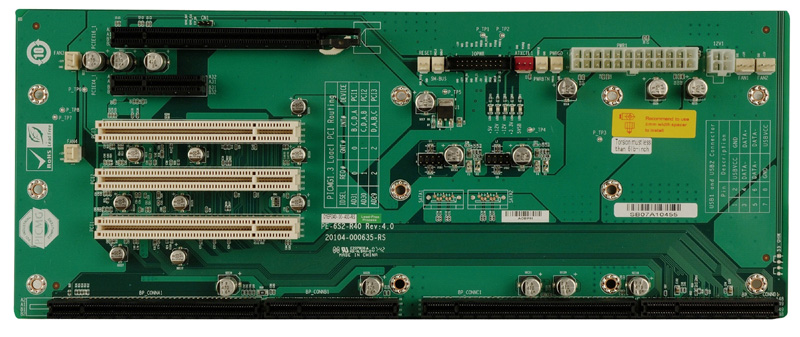

DPE-6S2-R40  3 PCI + 1 PCIe x16 + 1 PCIe x4 Passive Backplane

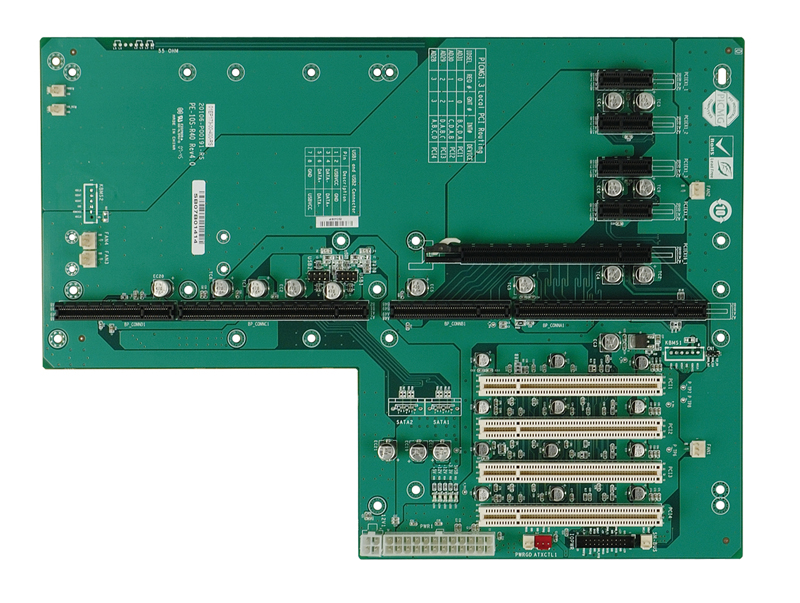

DPE-10S-R40  4 PCI + 1 PCIe x16 + 4 PCIe x1 Passive Backplane
