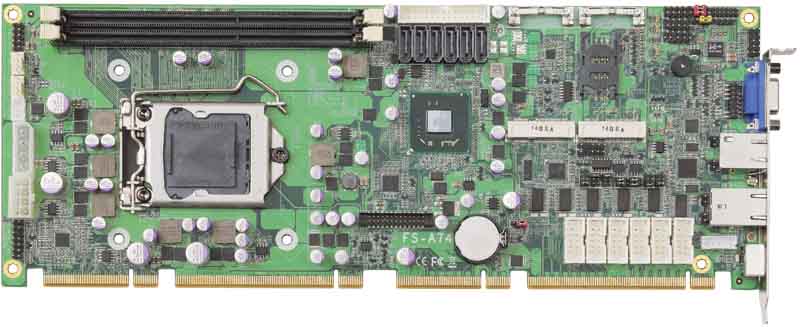

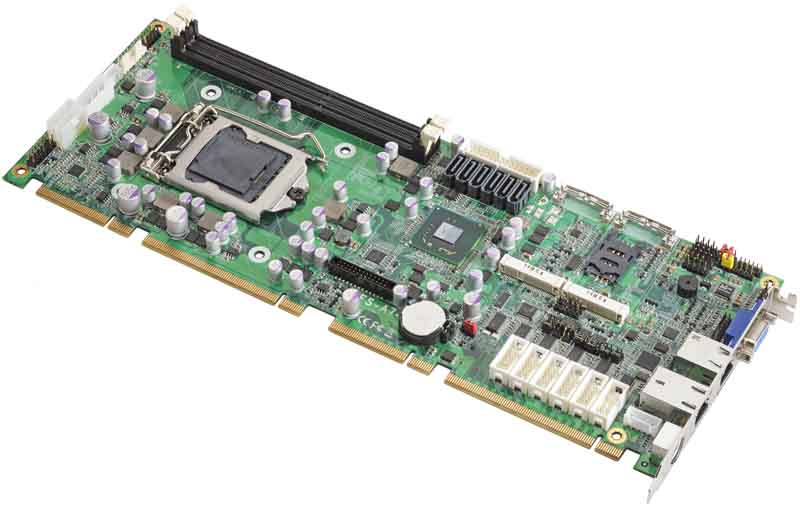

FS-A74
2nd generation Intel® Core™ i7 / i5 / i3 Pentium and Xeon Motherboard

2nd generation Intel® Core i7/i5/i3, Pentium & Xeon with Intel® Q67 Express chip
Onboard VGA & DVI, 16 GB DDR3, 2 x Giga LAN, 8 x USB 2.0, 6 x COM, HD Audio
6 x SATA with RAID, GPIO, LPT, 2 x Mini-PCIe sockets, 1 x SIM socket

view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched PICMG 1.3 SBC with Q67 Chipset.

FS-A74 designed for the 2nd generation Intel Core i7/i5/i3 processors in the LGA1155 by the Q67 chipset. Theses platform supports Intel Turbo Boost Technology 2.0,  to provide even more performance when needed on the latest-generation Intel® microarchitecture code name Sandy Bridge. Intel® Turbo Boost Technology 2.0 automatically allows processor cores to run faster than the base operating frequency if it's operating below power, current, and temperature specification limits, along with a intel 2nd generation 32 nm Core i7/i5/i3, the Intel processors  with HD Graphic 3000 that contains a refresh of the sixth generation graphics core enabling substantial gains in performance and lower power consumption, this innovative two-chip platform delivers higher performance, energy efficiency, most secure and manageable, It is ideal for a various range of applications, such as industrial control and automation, gaming, Medical Instruments, Surveillance Server, Military systems, print imaging and digital signage etc.

FS-A74 SBC is based on Q67 chipset, and equipped with DDR3 1066/1333 MT/s data transfer rates memory up to a maximum of 16GB in dual DIMM slots. FS-A74 supports VGA, DVI. 5 x RS232C and 1 x RS232/422/485 ports, Networking is provided by Intel 2 x 82574L Giga LAN, 8 x USB2.0 ports, High Definition Audio port, 4 SATA2.0 and 2 SATA3.0, two Mini-PCIE expansion slots & 1 x SIM socket.

BackToTop

  Key Feature
  • CPU: 2nd generation Intel® Core™ i7/ i5/ i3, Pentium & Xeon desktop in the LGA1155

  • Memory2 x DDR3 1066/1333 DIMM up to 16 GB

  • Chipset: Intel® Q67 Express Chipset

  • Display InterfaceOnboard VGA & DVI

  • LAN Interface2 x Giga LAN.

  • Serial ATA: Support four SATA2 + two SATA3 with RAID 0,1,5,10.

  • Audio: Intel® Q67 integrated with Realtek ALC888 High Definition Audio.

  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 8 x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports, Audio, SPDIF

  • Extended interface: 2 x Mini-PCIe sockets.

  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.

BackToTop

  Specification


Form Factor

PICMG 1.3 SBC

Processor

Intel® Core i7 / i5 / i3, Pentium & Xeon Desktop processor

Package Type: FCLGA1155

Memory

2 x DDR3 1066/1333 DIMM up to 16 GB

Chipset

Intel® Q67 Express Chipset

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

ACPI 1.0 compliant, supports power saving mode

Serial ATA Interface

Intel® Q67 chipset built-in 4 x Serial ATA II interface up to 300MB/s

2 x SATA3 interface up to 600MB/s. Total 6 x SATA interface

Support RAID 0, 1, 5, 10 and Intel® Rapid Storage Technology

VGA Interface

Integrated Intel® HD graphic technology

 DVI Interface  Onboard 26-pin DVI interface

Audio Interface

Intel® integrated Q67 with Realtek ALC888 HD Audio

LAN Interface

1 x Intel® 82574L & 1 x Intel® 82579LM Gigabit Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

2 x Mini-PCIe sockets

Internal I/O Port

5 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x CDIN, 1 x SMBus,

1 x LPT, 1 x Audio, 1 x IrDA, 8 x USB2.0, 1 x SIM

External I/O Port

1 x PS/2 keyboard/mouse, 2 x RJ45, 1 x VGA, 4 x USB2.0,

1 x Audio, 3 x RS232, 1 x SPDIF

External Audio

Line-in, MIC-in, Front, Rear, Center/Subwoofer and optical SPDIF

Power Requirement

+5V, +12V & 5VSB

Board Dimension

338 mm x 126 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

FS-A74TDG

PICMG 1.3 support 2nd generation Intel® Core i7 / i5 / i3 LGA 1155,

VGA, DVI, USB2.0, support 1 x PCIe X16 & 4 x PCIe X1,  1 x Giga LAN

FS-A74TDG2

PICMG 1.3 support 2nd generation Intel® Core i7 / i5 / i3 LGA 1155,

VGA, DVI, USB2.0, support 1 x PCIe X16 & 4 x PCIe X1,  2 x Giga LAN

FS-A74FTDG

PICMG 1.3 support 2nd generation Intel® Core i7 / i5 / i3 LGA 1155,

VGA, DVI, USB2.0, support 1 x PCIe X16 & 1 x PCIe X4,  1 x Giga LAN

FS-A74FTDG2

PICMG 1.3 support 2nd generation Intel® Core i7 / i5 / i3 LGA 1155,

VGA, DVI, USB2.0, support 1 x PCIe X16 & 1 x PCIe X4,  2 x Giga LAN

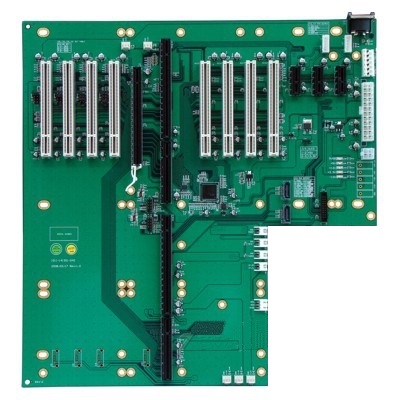

DBPE-1308AC2

 8 PCI + 1 PCIe x16 + 3 PCIe x1 Active Backplane
DPE-6S2-R40  3 PCI + 1 PCIe x16 + 1 PCIe x4 Passive Backplane
DPE-10S-R40  4 PCI + 1 PCIe x16 + 4 PCIe x1 Passive Backplane
