AS-C76
3rd and 2nd generation Intel® Core™ i7 / i5 / i3  ATX Motherboard
Support  3rd and 2nd generation  Intel® Core™ i7 / i5 / i3 / desktop CPU with
Intel® Q77 Express, DDR3 up to 32GB, Onboard VGA & DVI, 2 x Giga LAN,
8 x USB 2.0, 4 x USB 3.0, 6 x COM, HD Audio, 4 x SATAII & 2 x SATAIIl with RAID,
GPIO,TPM, PCIe X16, PCIe X4, Mini-PCIe & Mini-PCI, 5 x PCI socket .

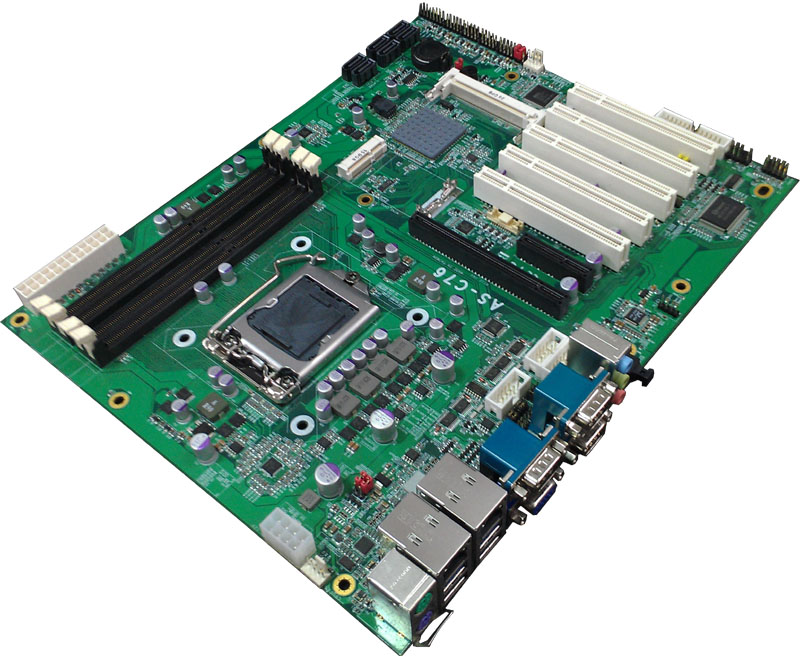

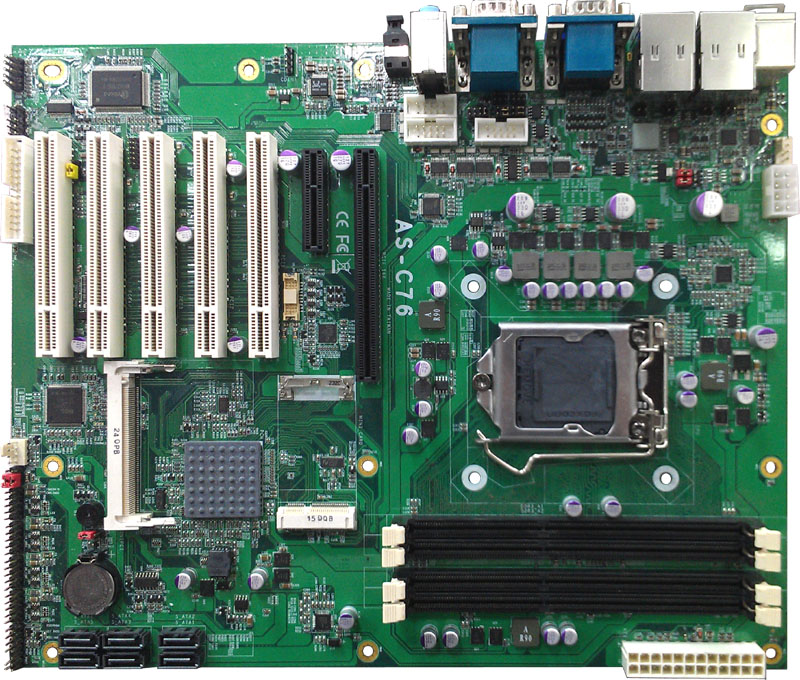

view larger image





-

Overview

-

Feature

-

Specification

-

Product Image

-

Ordering Guide

-

Datasheet (PDF format)

-

Technical Document

  Overview

AS-C76 is a industrial ATX motherboard support Intel Ivy Bridge processor at LGA1155, Flexible extend slots including PCI-Express X16 / X4, Mini-PCI & Mini-PCIe, 5 x PCI socket. For the IO ports , there're 8 x USB 2.0, 4 x USB 3.0, TPM , 6 x COM, 1 x LPT, GPIO interface, 2 x Giga LAN,  Onboard VGA + DVI for Dual display solution .

This platform is ideal for developing high-performance systems for industrial control and automation, retail, gaming, print imaging and digital signage.

Onboard Intel® 82579LM GbE controller support Intel® AMT 8.0 feature on primary LAN port. The BIOS is ready to support Intel® AMT 8.0 feature. The necessary prerequisite is your CPU must support Intel® vPro technology ex. i7-3770

For further instruction about the Intel® AMT features and set up, please refer to the iAMT Setting.pdf

BackToTop


  Key Feature

  • CPU: Intel® 3rd generation Core™ i7/ i5/ i3/ Desktop in the FCLGA1155  socket

          (support Intel® 2nd generation Core™ i7/ i5/ i3/ Desktop in the FCLGA1155 socket)

  • Memory: 4 x DDR3 1006/1333 MHz up to 32 GB

  • Chipset: Intel® BD82Q77 PCH

  • Integrated Graphics: Intel® Clear Video integrated HD Graphics Technology

  • VGA Interface: Onboard DSUB15 connector for VGA interface

  • DVI interface: Onboard DVI with 20-pin connector

  • LAN Interface: 1 x Intel® 82574L Giga LAN and 1 x Intel® 82579LM Giga LAN

  • Serial ATA: Support 6 x SATA ( 4 x serial ATAII, 2 x serial ATAIII )

  • Audio: Realtek ALC888 High Definition Audio.

  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 8 x USB2.0 ports,

           4 x USB3.0 ports, 1 x DB15 VGA port, PS/2 keyboard and mouse ports,

           1 x SPDIF

  • Extended interface: PCI-Express X16 & X4, 5 x PCI, Mini-PCIe & Mini-PCI socket.

           Support mSATA(SATAII) for Mini_Card,but SATA6 will be disable(AS-C76S )



  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.

  • Power requirement : Standard 24-pin ATX power supply ( 20-pin is compatible)             Standard 8-pin 12V power Input connector ( 4-pin is compatible)

BackToTop


  Specification


Form Factor

industrial ATX Motherboard

Processor

3rd and 2nd Generation Intel® Core™ i7/ i5/ i3/Celeron® Desktop Processor.

Package Type:  FCLGA1155

Memory

4 x DDR3 1066/1333 DIMM up to 32 GB

Chipset

Intel® BD82Q77 PCH

Integrated Graphics

Intel® Core™ integrated HD Graphics Technology

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

ACPI 3.0 compliant, supports power saving mode

TPM

Infineon SLB9635 for TPM1.2

Serial ATA Interface

Intel® Q77 PCH built-in 4 x Serial ATAII interface up to 300MB/s

& 2 x Serial ATAIII interface up to 600MB/s

Support RAID 0, 1, 5, 10 and Intel Rapid Storage Technology.

VGA Interface

Onboard DSUB15 connector for VGA interface
 DVI Interface  Onboard 20-pin DVI interface

Audio Interface


Realtek ALC888 HD Audio

LAN Interface

1 x Intel® 82574L Gigabit Ethernet Controller

1 x Intel® 82579LM Gigabit Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

One PCIE X 16 Gen3 slot‚ One PCIE X 4 slot‚ One Mini PCI socket and One PCIE Mini card ,Five PCI slots.

Support mSATA(SATAII) for Mini_Card,but SATA6 will be disable(AS-C76S )

Internal I/O Port

1 x RS232/422/485, 1 x GPIO port, 1 x CDIN connector,1 x Audio

connector, 1 x IrDA connector, 1 x SMBUS connector, 1x DVI , 2 x

 Serial Port, 8 x USB 2.0 ports and 1 x Parallel port.

External I/O Port

PS/2 Keyboard/Mouse Port, 2 x RJ45 LAN ports, 1 x DB15

VGA port, 4 x USB3.0 ports and 3 x Serial Port.

External Audio

Line-in, MIC-in, Front, Rear, Center/Subwoofer and Optical SPDIF

outputs.

Power Requirement

Standard 24-pin ATX power supply ( 20-pin is compatible)             Standard 8-pin 12V power Input connector ( 4-pin is compatible)

Board Dimension

307 mm x 244 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format
