MPX-25858
8-ch Video Input @  D1 resolution Mini-PCIe video capture card

    Not support Intel baytrail products

 Features

- Mini-PCIe interface

- Up to 8-channel Video inputs

- Support D1 resolution

- Windows Driver & SDK provide

Specifications

Form Factor

Mini-PCIe Interface

Input Type

D-Type: DB9 x 2 for Video & Audio

Video Input (s)

8 (BNC)

Audio Input (s)

8 (RCA) ( output 2 channels )

Video Resolution - NTSC/PAL

Max total 240 fps @ D1

Software

Windows driver / SDK  ( Directshow Support )

Support GPIO

No

Dimensions

51mm x 30mm

Compliance

RoHS , CE , FCC

User's Manual

User's manual  , Datasheet

Driver

Windows XP 32bit & Windows 7 32bit

Accessories

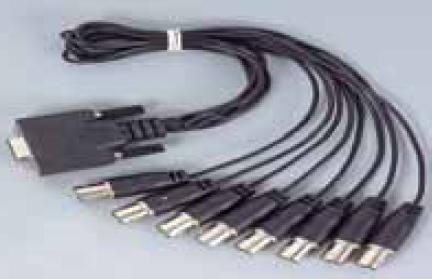

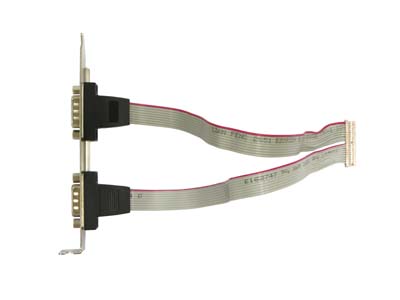

                8-ch BNC video cable x1                     8-ch RCA audio cable x1                DF14 to dual D-sub 9 Cable ( w/ bracket) x1

Ordering Code

MPX-25858

8 channels Video & Audio inputs Mini-PCIe capture Card with SDK provided
