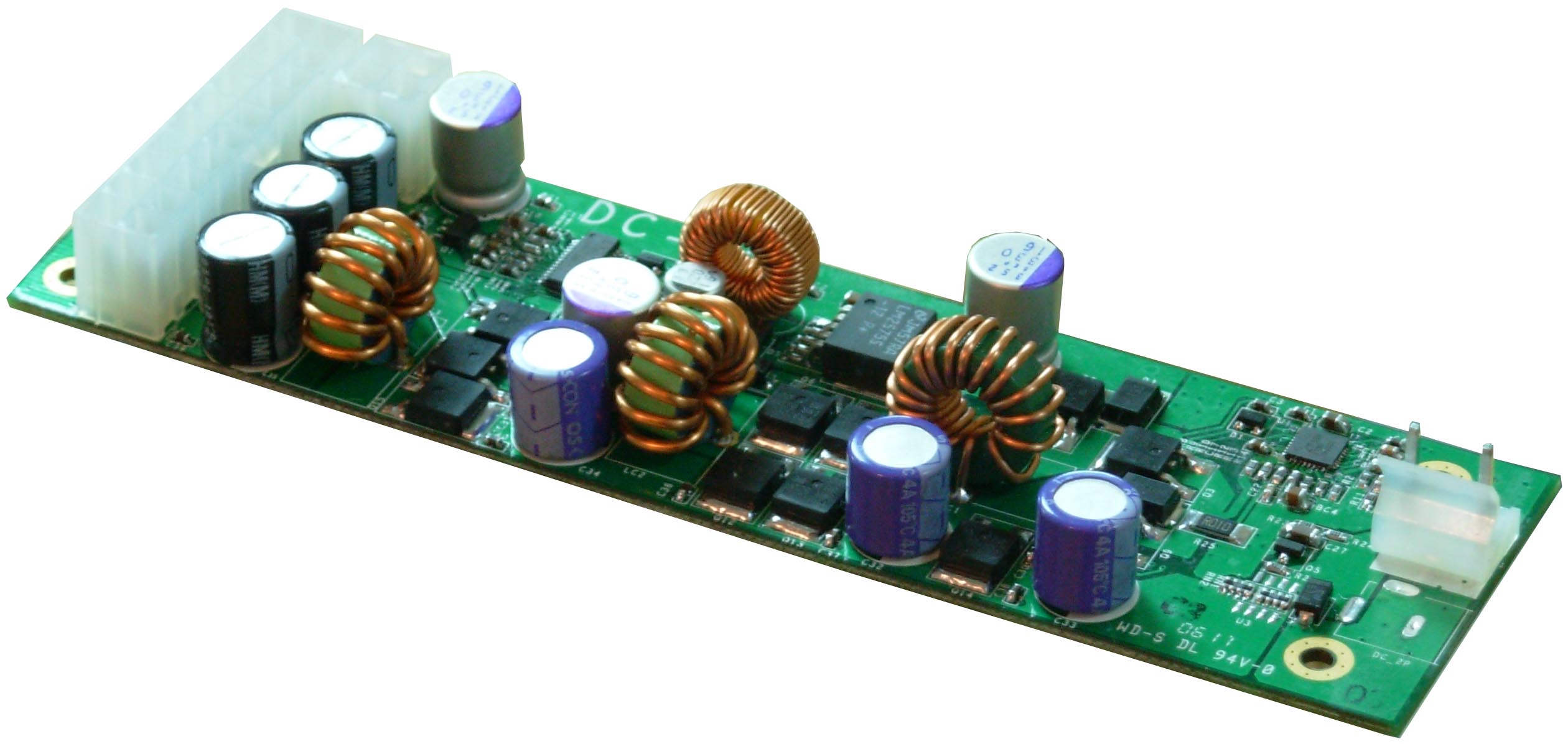

DC-DC2

  DC to DC Power converter



Click to View Large Image
- Power Input :

8 ~ 24VDC full range power input ( MAX 150W)
External 2-pin wafer or DC Jack connector
- Power output :
  Range Max Load
+3.3 3.14 ~ 3.47 6 A
+5 4.75 ~ 5.25 10 A
+12 11.4 ~ 12.6 5 ~ 8 A
-12 -10.8 ~ -13.2 0.6 A
- Dimension :
45mm x 155mm
- Technical Document:
Manual

Ordering Guide

DC-DC2

150W DC/DC Power Converter with 2-pin wafer connector
